Iscar ISCAR 5503638

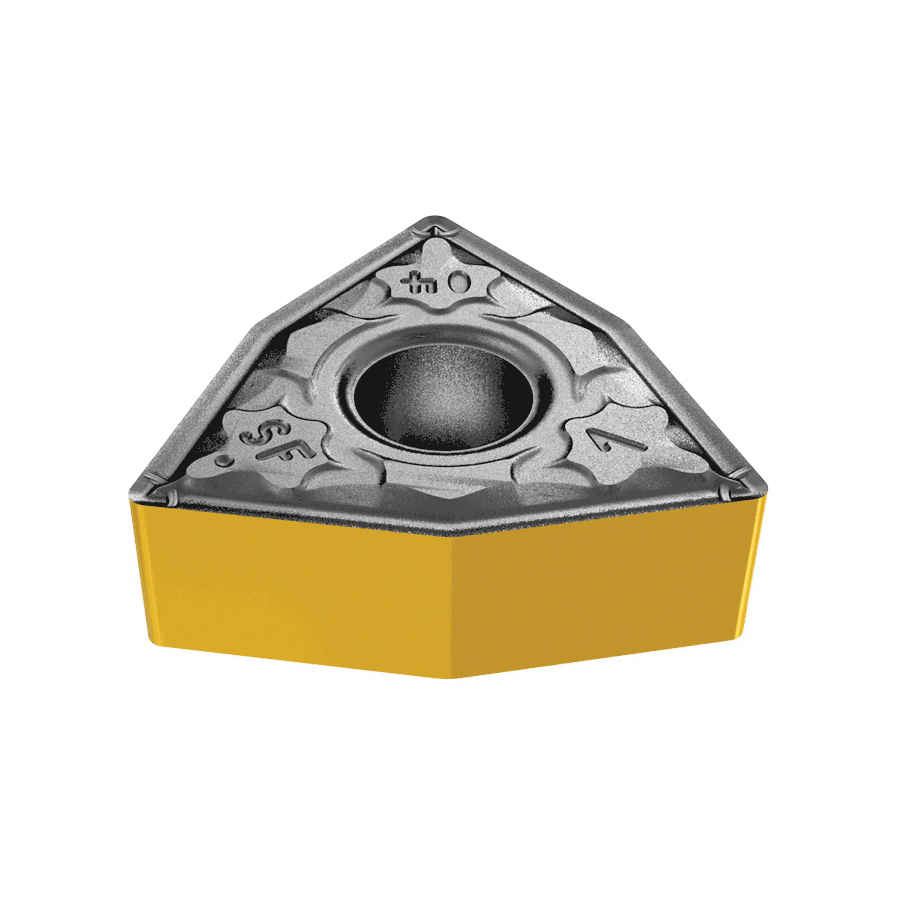

Iscar 5503638 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 3 1 SF IC570, WNMG Insert, Material Grade: M, P, 3-1 Insert, Trigon Shape, 06 Seat, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC570
Invoice description:
Wnmg 3-1-sf Ic570
Factory Order

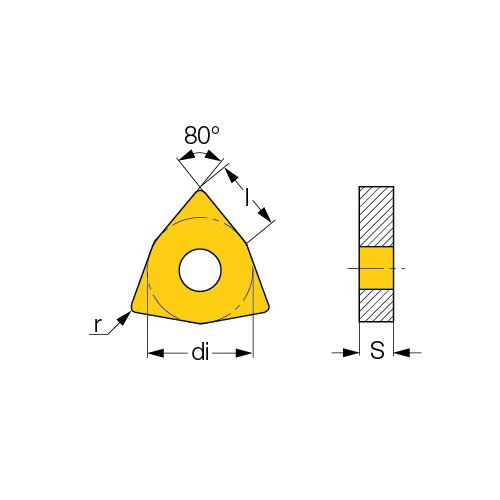

Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 3-1 Insert, Trigon, 1.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 06 Seat, SF Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC570, ANSI Code: WNMG 3 1 SF IC570, ISO Code: WNMG 06T304-SF IC570, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Controls chip flow at very low feed and depth of cut
- Excellent crater wear resistance
- IC570 grade a PVD coated grade, used for semi-finishing and finishing at medium cutting speed of alloy and stainless steel
Specifications
ApplicationSuper Finishing Applications
ANSI CodeWNMG 3 1 SF IC570
ChipbreakerSF
Corner Radius0.4 mm
FinishPVD-TiCN+TiN Coated
For Use OnStainless Steel and Steel
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size3-1
Insert StyleWNMG
ISO CodeWNMG 06T304-SF IC570
Manufacturers GradeIC570
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut1.5 mm
Relief Angle0 deg
Seat Size06
SeriesISOTURN
ShapeTrigon
Thickness3.97 mm
Type2-Sided
Additional Information
Country of OriginIL
