Iscar ISCAR 5503223

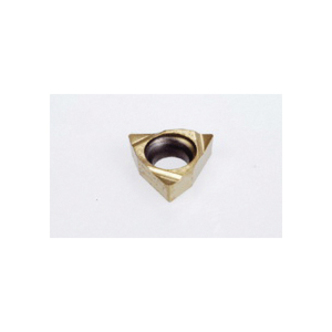

Iscar 5503223 ISOTURN 1-Sided Turning Insert, ANSI Code: WBMT 520L IC530N, WBMT Insert, Material Grade: M, P, 520 Insert, Trigon Shape, 06 Seat, Positive Rake, Left Hand Cutting, For Use On Stainless Steel and Steel, Cermet, Manufacturers Grade: IC530N
Invoice description:
Wbmt 520l Ic530n
Factory Order

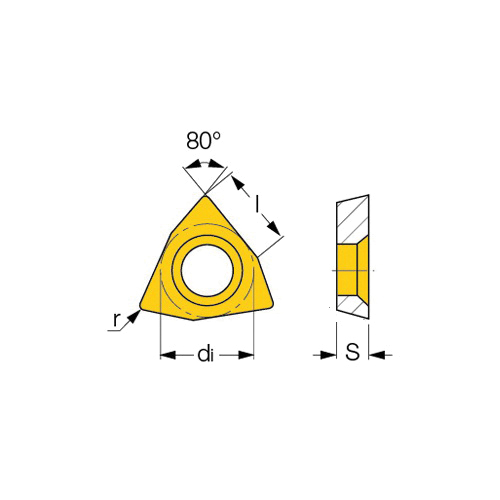

Iscar Turning Insert, 1-Sided, Series: ISOTURN, WBMT Insert, 520 Insert, Trigon, 2 mm Maximum Depth of Cut, 3.97 mm Inscribed Circle, 1.59 mm Thickness, 06 Seat, Positive Rake, L Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC530N, ANSI Code: WBMT 520L IC530N, ISO Code: WBMT 060102L IC530N, 80 deg Included Angle, 5 deg Relief Angle, Left Hand Cutting, Cermet, PVD-TiCN+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Positive flank ground chipformer
- Provides excellent surface finish
- IC530N grade a cermet grade, TiCN and TiN PVD coated
- Used for high speed semi-finishing and finishing applications with excellent surface finish
- Wear resistant, prevents built-up edge
Specifications
ApplicationFinishing Applications
ANSI CodeWBMT 520L IC530N
ChipbreakerL
Corner Radius0.2 mm
Cutting DirectionLeft Hand
FinishPVD-TiCN+TiN Coated
For Use OnStainless Steel and Steel
Included Angle80 deg
Inscribed Circle3.97 mm
Insert Size520
Insert StyleWBMT
ISO CodeWBMT 060102L IC530N
Manufacturers GradeIC530N
MaterialCermet
Material GradeM, P
Maximum Depth of Cut2 mm
RakePositive
Relief Angle5 deg
Seat Size06
SeriesISOTURN
ShapeTrigon
Thickness1.59 mm
Type1-Sided
Additional Information
Country of OriginIL
