Iscar ISCAR 5503038

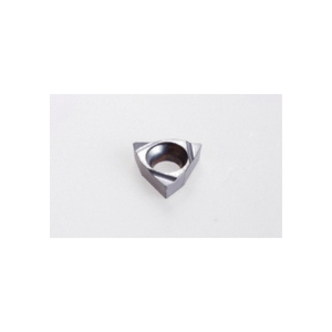

Iscar 5503038 ISOTURN Turning Insert, ANSI Code: WBMT 520-L IC354, WBMT Insert, Material Grade: M, P, 520 Insert, Trigon Shape, 06 Seat, Positive Rake, Left Hand Cutting, For Use On Stainless Steel and Steel, Carbide, Manufacturers Grade: IC354
Invoice description:
Wbmt 520l Ic354
Factory Order

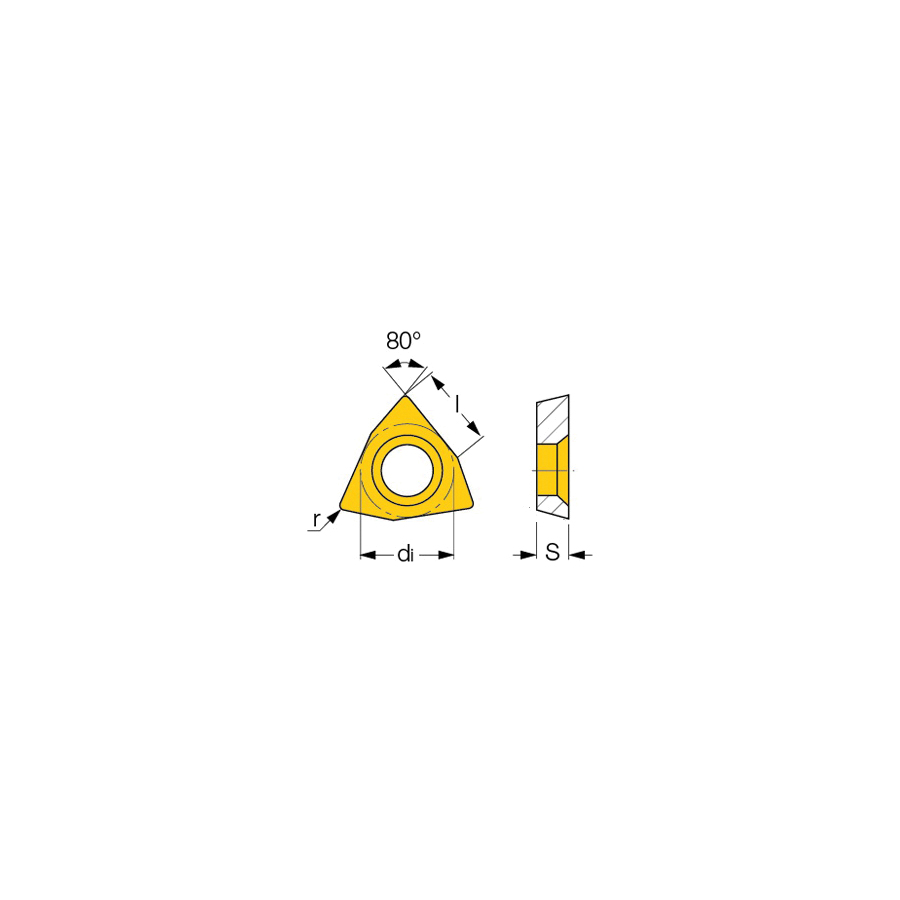

Iscar Turning Insert, Series: ISOTURN, WBMT Insert, 520 Insert, Trigon, 2 mm Maximum Depth of Cut, 3.97 mm Inscribed Circle, 1.59 mm Thickness, 06 Seat, Positive Rake, 0.2 mm Corner Radius, 2.26 mm Hole Dia, Manufacturers Grade: IC354, ANSI Code: WBMT 520-L IC354, ISO Code: WBMT 060102L IC354, 80 deg Included Angle, 5 deg Relief Angle, Left Hand Cutting, Carbide, PVD-TiCN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Positive flank inserts with a ground chipformer
- Used for finishing on miniature boring bars, provide excellent surface finish
- Chipbreaker on one side with hole and countersink
Specifications
ANSI CodeWBMT 520-L IC354
Corner Radius0.2 mm
Cutting DirectionLeft Hand
FinishPVD-TiCN Coated
For Use OnStainless Steel and Steel
Hole Diameter2.26 mm
Included Angle80 deg
Inscribed Circle3.97 mm
Insert Size520
Insert StyleWBMT
ISO CodeWBMT 060102L IC354
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut2 mm
RakePositive
Relief Angle5 deg
Seat Size06
SeriesISOTURN
ShapeTrigon
Thickness1.59 mm
Additional Information
Country of OriginIL
