Iscar ISCAR 5502707

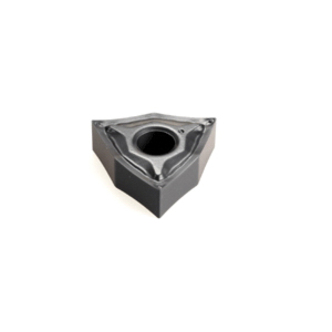

Iscar 5502707 ISOTURN 2-Sided Turning Insert, ANSI Code: WNMG 3-0-NF IC20N, WNMG Insert, Material Grade: M, P, 3-0 Insert, Trigon Shape, 06 Seat, Positive Rake, For Use On Stainless Steel and Steel, Cermet, Manufacturers Grade: IC20N
Invoice description:
Wnmg 3-0-nf Ic20n
Factory Order

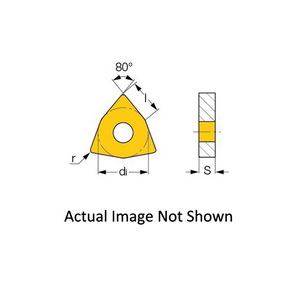

Iscar Turning Insert, 2-Sided, Series: ISOTURN, WNMG Insert, 3-0 Insert, Trigon, 1.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 06 Seat, Positive Rake, NF Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC20N, ANSI Code: WNMG 3-0-NF IC20N, ISO Code: WNMG 06T302-NF IC20N, 80 deg Included Angle, 0 deg Relief Angle, Cermet, Uncoated, Material Grade: M, P, For Use On: Stainless Steel and Steel
Features
- Low cutting forces due to very sharp edge and positive rake
- Chipbreaker on both sides with hole
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeWNMG 3-0-NF IC20N
ChipbreakerNF
Corner Radius0.2 mm
FinishUncoated
For Use OnStainless Steel and Steel
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size3-0
Insert StyleWNMG
ISO CodeWNMG 06T302-NF IC20N
Manufacturers GradeIC20N
MaterialCermet
Material GradeM, P
Maximum Depth of Cut1.5 mm
RakePositive
Relief Angle0 deg
Seat Size06
SeriesISOTURN
ShapeTrigon
Thickness3.97 mm
Type2-Sided
Additional Information
Country of OriginIL
