Iscar ISCAR 5502467

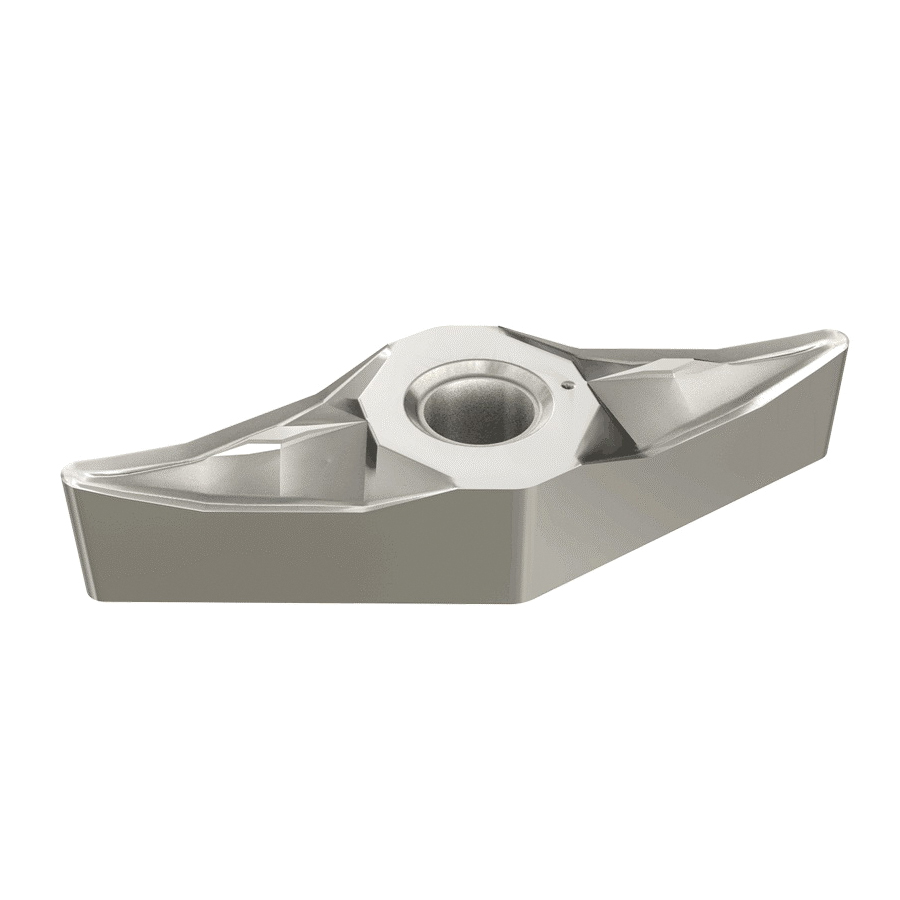

Iscar 5502467 ISOTURN 1-Sided Turning Insert, ANSI Code: VNMS 332-12 IC20, VNMS Insert, Material Grade: H, K, M, N, S, 332 Insert, Rhombic Shape, 16 Seat, Positive Rake, Carbide, Manufacturers Grade: IC20
Invoice description:
Vnms 332-12 Ic20
Factory Order

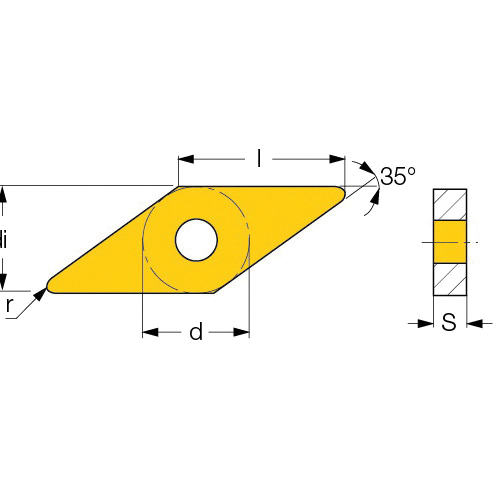

Iscar Turning Insert, 1-Sided, Series: ISOTURN, VNMS Insert, 332 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Positive Rake, 12 Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC20, ANSI Code: VNMS 332-12 IC20, ISO Code: VNMS 160408-12 IC20, 35 deg Included Angle, 0 deg Relief Angle, Carbide, Uncoated, Material Grade: H, K, M, N, S, For Use On: Stainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- A special positive rake angle for moderate cutting forces
Specifications
ANSI CodeVNMS 332-12 IC20
Chipbreaker12
Corner Radius0.8 mm
FinishUncoated
For Use OnStainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Included Angle35 deg
Inscribed Circle9.52 mm
Insert Size332
Insert StyleVNMS
ISO CodeVNMS 160408-12 IC20
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle0 deg
Seat Size16
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type1-Sided
Additional Information
Country of OriginIL
