Iscar ISCAR 5502159

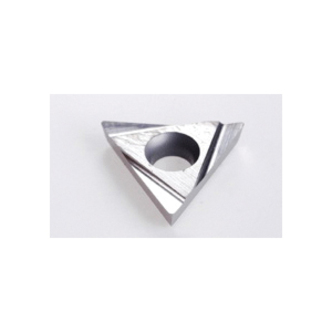

Iscar 5502159 ISOTURN Turning Insert, ANSI Code: TPGH 321-L IC70, TPGH Insert, 321 Insert, Triangular Shape, 16 Seat, Positive Rake, Left Hand Cutting, Carbide, Manufacturers Grade: IC70
Factory Order

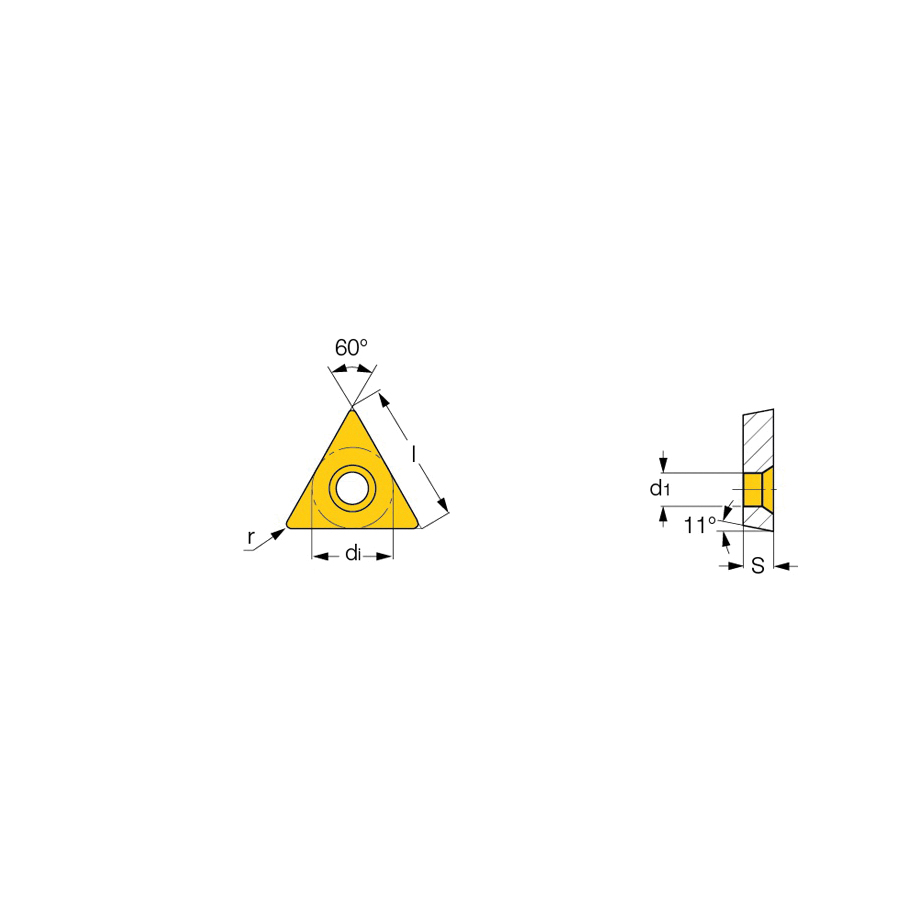

Iscar Turning Insert, Series: ISOTURN, TPGH Insert, 321 Insert, Triangular, 4 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.18 mm Thickness, 16 Seat, Positive Rake, L Chipbreaker, 0.4 mm Corner Radius, 4.3 mm Hole Dia, Manufacturers Grade: IC70, ANSI Code: TPGH 321-L IC70, ISO Code: TPGH 160304-L IC70, 60 deg Included Angle, 11 deg Relief Angle, Left Hand Cutting, Carbide, Uncoated
Features
- Positive flank inserts with a ground chipformer
- Chipbreaker on one side, with hole and countersink
Specifications
ANSI CodeTPGH 321-L IC70
ChipbreakerL
Corner Radius0.4 mm
Cutting DirectionLeft Hand
FinishUncoated
Hole Diameter4.3 mm
Included Angle60 deg
Inscribed Circle9.52 mm
Insert Size321
Insert StyleTPGH
ISO CodeTPGH 160304-L IC70
Manufacturers GradeIC70
MaterialCarbide
Maximum Depth of Cut4 mm
RakePositive
Relief Angle11 deg
Seat Size16
SeriesISOTURN
ShapeTriangular
Thickness3.18 mm
