Iscar ISCAR 5502143

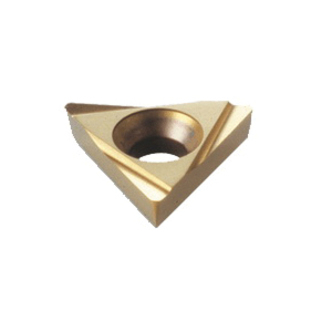

Iscar 5502143 ISOTURN Turning Insert, ANSI Code: TPGH 2-1-L IC20, TPGH Insert, Material Grade: H, K, M, N, S, 2-1 Insert, Triangular Shape, 11 Seat, Positive Rake, Left Hand Cutting, Carbide, Manufacturers Grade: IC20
Invoice description:
Tpgh 2-1-l Ic20
Factory Order
Iscar Turning Insert, Series: ISOTURN, TPGH Insert, 2-1 Insert, Triangular, 3 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 11 Seat, Positive Rake, L Chipbreaker, 0.4 mm Corner Radius, 3 mm Hole Dia, Manufacturers Grade: IC20, ANSI Code: TPGH 2-1-L IC20, ISO Code: TPGH 110204-L IC20, 60 deg Included Angle, 11 deg Relief Angle, Left Hand Cutting, Carbide, Uncoated, Material Grade: H, K, M, N, S, For Use On: Stainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive flank inserts with a ground chipformer
- Used for finishing, provide excellent surface finish
- Chipbreaker on one side with hole and countersink
Specifications
ANSI CodeTPGH 2-1-L IC20
ChipbreakerL
Corner Radius0.4 mm
Cutting DirectionLeft Hand
FinishUncoated
For Use OnStainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter3 mm
Included Angle60 deg
Inscribed Circle6.35 mm
Insert Size2-1
Insert StyleTPGH
ISO CodeTPGH 110204-L IC20
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut3 mm
RakePositive
Relief Angle11 deg
Seat Size11
SeriesISOTURN
ShapeTriangular
Thickness2.38 mm
Additional Information
Country of OriginIL
