Iscar ISCAR 5500519

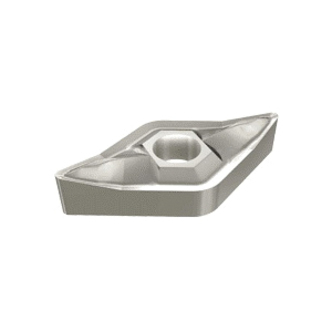

Iscar 5500519 ISOTURN 1-Sided Turning Insert, ANSI Code: DNMS 432-12 IC20, DNMS Insert, Material Grade: H, K, M, N, S, 432 Insert, Rhombic Shape, 15 Seat, Positive Rake, Carbide, Manufacturers Grade: IC20
Invoice description:
Dnms 432-12 Ic20
Factory Order

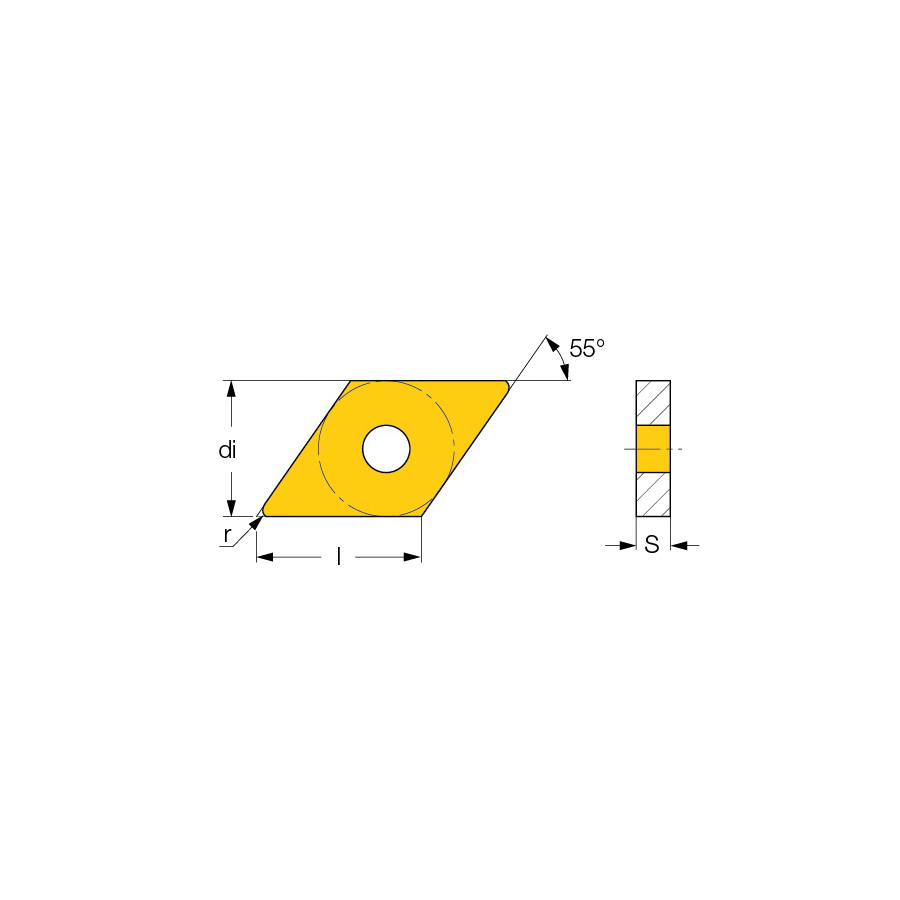

Iscar Turning Insert, 1-Sided, Series: ISOTURN, DNMS Insert, 432 Insert, Rhombic, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, Positive Rake, 0.8 mm Corner Radius, 5.1562 mm Hole Dia, Manufacturers Grade: IC20, ANSI Code: DNMS 432-12 IC20, ISO Code: DNMS 150408-12 IC20, 55 deg Included Angle, 0 deg Relief Angle, Carbide, Uncoated, Material Grade: H, K, M, N, S, For Use On: Stainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- A special positive rake angle for moderate cutting forces
Specifications
ANSI CodeDNMS 432-12 IC20
Corner Radius0.8 mm
FinishUncoated
For Use OnStainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter5.1562 mm
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleDNMS
ISO CodeDNMS 150408-12 IC20
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut4 mm
RakePositive
Relief Angle0 deg
Seat Size15
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type1-Sided
Additional Information
Country of OriginIL
