Iscar ISCAR 5500336

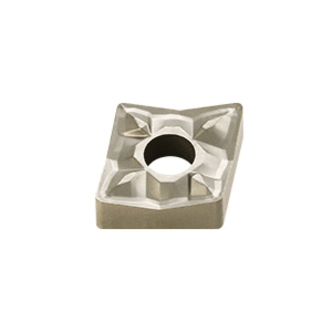

Iscar 5500336 ISOTURN 1-Sided Turning Insert, ANSI Code: CNMS 432-12 IC20, CNMS Insert, Material Grade: H, K, M, N, S, 432 Insert, Rhombic Shape, 12 Seat, Positive Rake, Carbide, Manufacturers Grade: IC20
Invoice description:
Cnms 432-12 Ic20
Factory Order

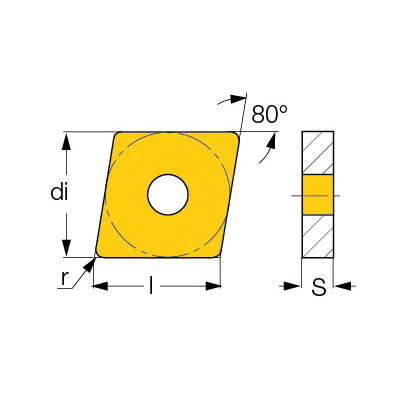

Iscar Turning Insert, 1-Sided, Series: ISOTURN, CNMS Insert, 432 Insert, Rhombic, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, 12 Chipbreaker, 0.8 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: IC20, ANSI Code: CNMS 432-12 IC20, ISO Code: CNMS 120408-12 IC20, 80 deg Included Angle, 0 deg Relief Angle, Carbide, Uncoated, Material Grade: H, K, M, N, S, For Use On: Stainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- A special positive rake angle for moderate cutting forces
Specifications
ANSI CodeCNMS 432-12 IC20
Chipbreaker12
Corner Radius0.8 mm
FinishUncoated
For Use OnStainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter4.4 mm
Included Angle80 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleCNMS
ISO CodeCNMS 120408-12 IC20
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut4 mm
RakePositive
Relief Angle0 deg
Seat Size12
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type1-Sided
Additional Information
Country of OriginIL
