Iscar ISCAR 3308202

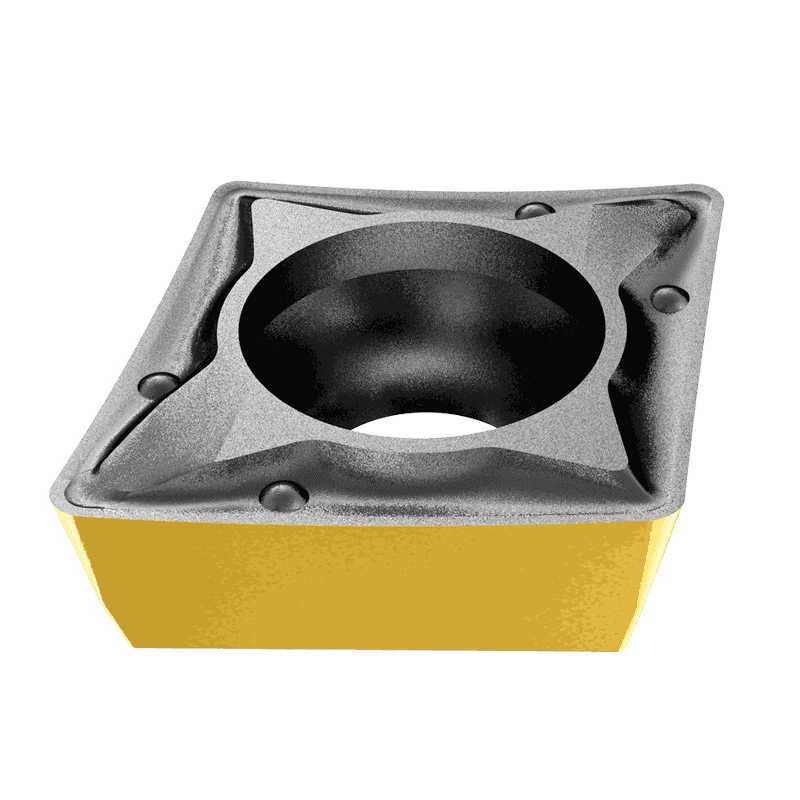

Iscar 3308202 ISOTURN Turning Insert, ANSI Code: CPMT 3-1-PF, CPMT Insert, 3-1 Insert, Rhombic Shape, Positive Rake, For Use On Soft Materials and Exotic Alloys, Manufacturers Grade: IC830
Invoice description:
Cpmt 3-1-pf Ic830
Factory Order
Iscar Turning Insert, Series: ISOTURN, CPMT Insert, 3-1 Insert, Rhombic, 3/8 in Inscribed Circle, 0.156 in Thickness, Positive Rake, 0.016 in Corner Radius, Manufacturers Grade: IC830, ANSI Code: CPMT 3-1-PF, ISO Code: CPMT-PF, 80 deg Included Angle, 11 deg Relief Angle, For Use On: Soft Materials and Exotic Alloys
Features
- 80 deg rhombic inserts with 11 deg positive flank for semi-finishing and finishing applications on soft materials and exotic alloys
- Positive rake angle, low cutting forces
Specifications
ApplicationISO Turning
ANSI CodeCPMT 3-1-PF
Corner Radius0.016 in
For Use OnSoft Materials and Exotic Alloys
Included Angle80 deg
Inscribed Circle3/8 in
Insert Size3-1
Insert StyleCPMT
ISO CodeCPMT-PF
Manufacturers GradeIC830
RakePositive
Relief Angle11 deg
SeriesISOTURN
ShapeRhombic
Thickness0.156 in
Additional Information
Standards/ApprovalISO 13399
