Iscar ISCAR 3308169

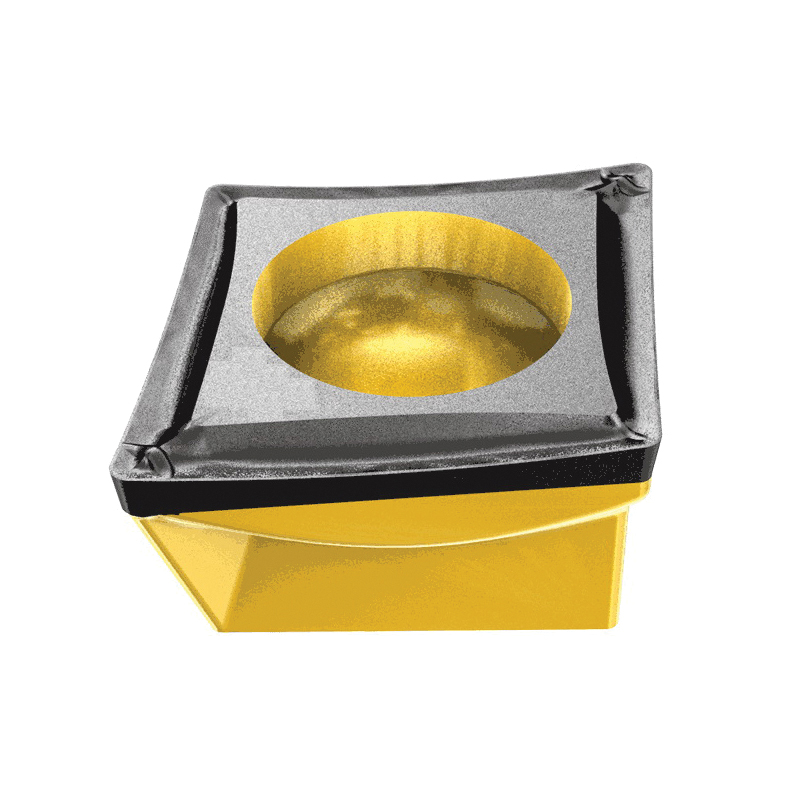

Iscar 3308169 CHAMTURN Turning Insert, ANSI Code: CC95MT 100504-SM, CC95MT Insert, 100504 Insert, Rhombic Shape, For Use On Soft Materials and Exotic Alloys, Manufacturers Grade: IC830

Invoice description: Cc95mt 100504-sm Ic830

UNSPSC: 23242105
Manufacturer PN: 3308169
$13.59 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Turning Insert, Series: CHAMTURN, CC95MT Insert, 100504 Insert, Rhombic, 9.52 mm Inscribed Circle, 5 mm Thickness, 0.4 mm Corner Radius, Manufacturers Grade: IC830, ANSI Code: CC95MT 100504-SM, ISO Code: CC95MT-SM, 80 deg Included Angle, PVD TiALN/AlTiN+TiN Coated, For Use On: Soft Materials and Exotic Alloys

  • Features

  • Single sided 80 deg rhombic insert
  • Used for semi-finishing and finishing on a wide range of materials including soft materials and exotic alloys (part of the CHAMELEON multifunction system)

Specifications

ApplicationTooling Systems and HSK
ANSI CodeCC95MT 100504-SM
Corner Radius0.4 mm
FinishPVD TiALN/AlTiN+TiN Coated
For Use OnSoft Materials and Exotic Alloys
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size100504
Insert StyleCC95MT
ISO CodeCC95MT-SM
Manufacturers GradeIC830
SeriesCHAMTURN
ShapeRhombic
Thickness5 mm

Additional Information

Standards/ApprovalISO 13399
