Iscar ISCAR 3308165

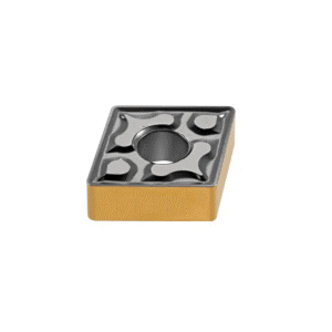

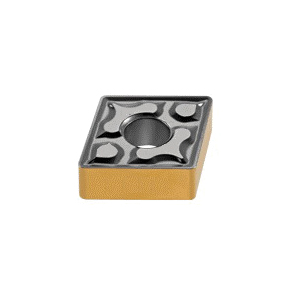

Iscar 3308165 ISOTURN 2-Sided Turning Insert, ANSI Code: CNMG 322-TF IC830, CNMG Insert, Material Grade: M, P, S, 322 Insert, Rhombic Shape, 09 Seat, Positive Rake, For Use On Stainless Steel, Steel and High Temperature Alloys, Carbide
Invoice description:
Cnmg 322-tf Ic830
Factory Order

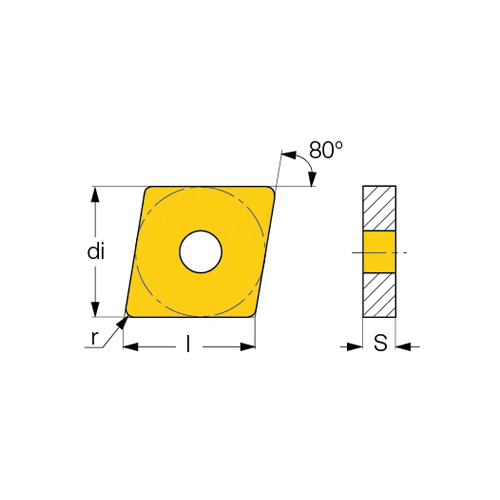

Iscar Turning Insert, 2-Sided, Series: ISOTURN, CNMG Insert, 322 Insert, Rhombic, 4 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.18 mm Thickness, 09 Seat, Positive Rake, TF Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC830, ANSI Code: CNMG 322-TF IC830, ISO Code: CNMG 090308-TF IC830, 80 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and High Temperature Alloys
Features
- Positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
Specifications
ANSI CodeCNMG 322-TF IC830
ChipbreakerTF
Corner Radius0.8 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
For Use OnStainless Steel, Steel and High Temperature Alloys
Included Angle80 deg
Inscribed Circle9.52 mm
Insert Size322
Insert StyleCNMG
ISO CodeCNMG 090308-TF IC830
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut4 mm
RakePositive
Relief Angle0 deg
Seat Size09
SeriesISOTURN
ShapeRhombic
Thickness3.18 mm
Type2-Sided
