Iscar ISCAR 3308164

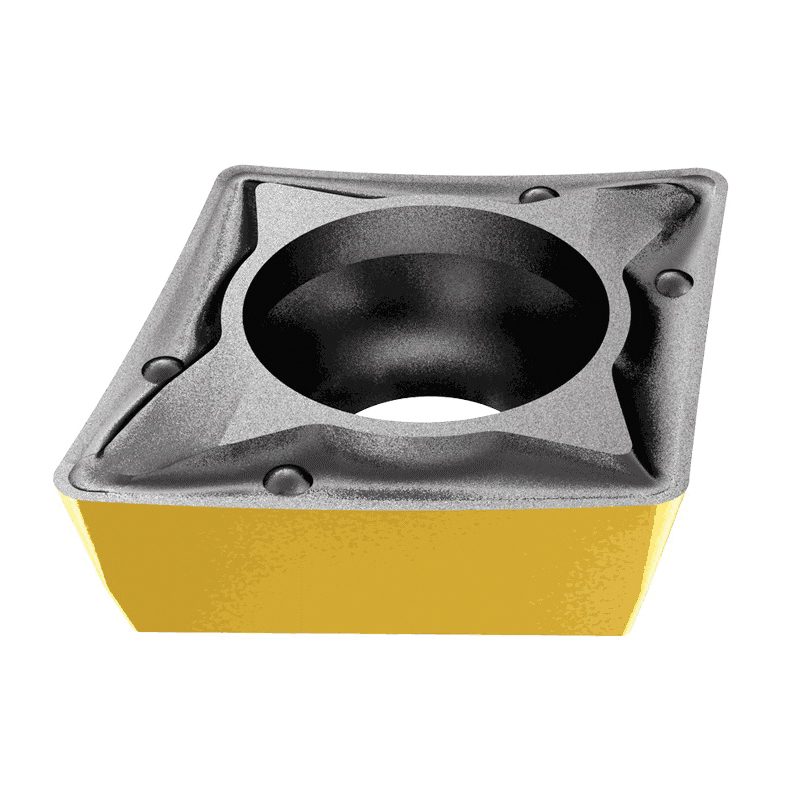

Iscar 3308164 ISOTURN Turning Insert, ANSI Code: CPMT 2-1-PF, CPMT Insert, 2-1 Insert, Rhombic Shape, Positive Rake, For Use On Soft Materials and Exotic Alloys, Manufacturers Grade: IC830

UNSPSC: 23242105
Manufacturer PN: 3308164
$10.60 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Turning Insert, Series: ISOTURN, CPMT Insert, 2-1 Insert, Rhombic, 1/4 in Inscribed Circle, 0.094 in Thickness, Positive Rake, 0.016 in Corner Radius, Manufacturers Grade: IC830, ANSI Code: CPMT 2-1-PF, ISO Code: CPMT-PF, 80 deg Included Angle, 11 deg Relief Angle, For Use On: Soft Materials and Exotic Alloys

  • Features

  • 80 deg rhombic inserts with 11 deg positive flank for semi-finishing and finishing applications on soft materials and exotic alloys
  • Positive rake angle, low cutting forces

Specifications

ApplicationISO Turning
ANSI CodeCPMT 2-1-PF
Corner Radius0.016 in
For Use OnSoft Materials and Exotic Alloys
Included Angle80 deg
Inscribed Circle1/4 in
Insert Size2-1
Insert StyleCPMT
ISO CodeCPMT-PF
Manufacturers GradeIC830
RakePositive
Relief Angle11 deg
SeriesISOTURN
ShapeRhombic
Thickness0.094 in
