Iscar ISCAR 3308155

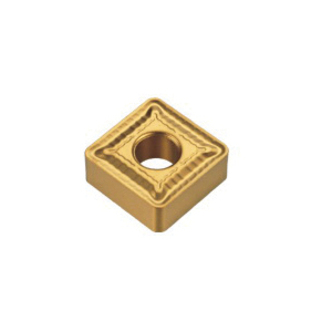

Iscar 3308155 ISOTURN Turning Insert, ANSI Code: SNMG 543-GN, SNMG Insert, 543 Insert, Squared Shape, For Use On Cast Iron and Steel, Manufacturers Grade: IC830
Invoice description:
Snmg 543-gn Ic830
Factory Order
Iscar Turning Insert, Series: ISOTURN, SNMG Insert, 543 Insert, Squared, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.047 in Corner Radius, Manufacturers Grade: IC830, ANSI Code: SNMG 543-GN, ISO Code: SNMG-GN, 90 deg Included Angle, For Use On: Cast Iron and Steel
Features
- Double sided square inserts, secure cutting edge, for medium and semi-roughing on steel and cast iron
Specifications
ApplicationISO Turning
ANSI CodeSNMG 543-GN
Corner Radius0.047 in
For Use OnCast Iron and Steel
Included Angle90 deg
Inscribed Circle5/8 in
Insert Size543
Insert StyleSNMG
ISO CodeSNMG-GN
Manufacturers GradeIC830
SeriesISOTURN
ShapeSquared
Thickness1/4 in
Additional Information
Standards/ApprovalISO 13399
