Iscar ISCAR 3308115

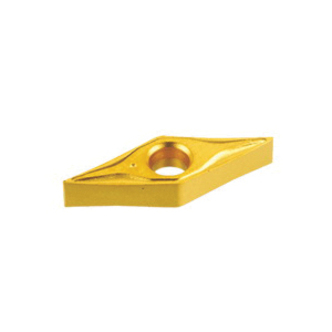

Iscar 3308115 ISOTURN 2-Sided Turning Insert, ANSI Code: VNMG 331-NF IC830, VNMG Insert, Material Grade: M, P, S, 331 Insert, Rhombic Shape, 16 Seat, Positive Rake, For Use On Stainless Steel, Steel and High Temperature Alloys, Carbide
Invoice description:
Vnmg 331-nf Ic830
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, VNMG Insert, 331 Insert, Rhombic, 2.5 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Positive Rake, NF Chipbreaker, 0.4 mm Corner Radius, 3.81 mm Hole Dia, Manufacturers Grade: IC830, ANSI Code: VNMG 331-NF IC830, ISO Code: VNMG 160404-NF IC830, 35 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and High Temperature Alloys
Features
- Low cutting forces due to very sharp edge and positive rake
- Chipbreaker on both sides, with hole
Specifications
ApplicationSemi-Finishing and Finishing
ANSI CodeVNMG 331-NF IC830
ChipbreakerNF
Corner Radius0.4 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
For Use OnStainless Steel, Steel and High Temperature Alloys
Hole Diameter3.81 mm
Included Angle35 deg
Inscribed Circle9.52 mm
Insert Size331
Insert StyleVNMG
ISO CodeVNMG 160404-NF IC830
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut2.5 mm
RakePositive
Relief Angle0 deg
Seat Size16
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
