Iscar ISCAR 3308113

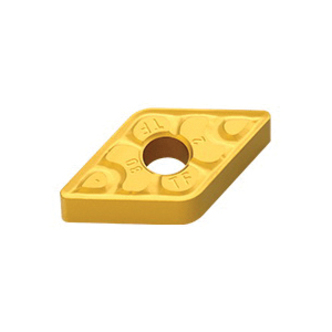

Iscar 3308113 ISOTURN 2-Sided Turning Insert, ANSI Code: DNMG 432-TF IC830, DNMG Insert, Material Grade: M, P, S, 432 Insert, Rhombic Shape, 15 Seat, Positive Rake, For Use On Stainless Steel, Steel and High Temperature Alloys, Carbide
Invoice description:
Dnmg 432-tf Ic830
Factory Order
Iscar Turning Insert, 2-Sided, Series: ISOTURN, DNMG Insert, 432 Insert, Rhombic, 3.5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, Positive Rake, TF Chipbreaker, 0.8 mm Corner Radius, 5.1562 mm Hole Dia, Manufacturers Grade: IC830, ANSI Code: DNMG 432-TF IC830, ISO Code: DNMG 150408-TF IC830, 55 deg Included Angle, 0 deg Relief Angle, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and High Temperature Alloys
Features
- Positive rake angle that varies along the edge to negative in order to prevent chipping
- Special design reduces cratering
- Chipbreaker on both sides with hole
Specifications
ANSI CodeDNMG 432-TF IC830
ChipbreakerTF
Corner Radius0.8 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
For Use OnStainless Steel, Steel and High Temperature Alloys
Hole Diameter5.1562 mm
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size432
Insert StyleDNMG
ISO CodeDNMG 150408-TF IC830
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut3.5 mm
RakePositive
Relief Angle0 deg
Seat Size15
SeriesISOTURN
ShapeRhombic
Thickness4.76 mm
Type2-Sided
