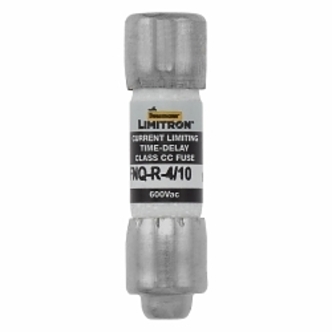

Bussmann BUSS FNQ-R-4/10
Bussmann CC-Tron FNQ-R-4/10 Current Limiting Time Delay Fuse, 0.4 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body
Factory Order
Bussmann CC-Tron Fuse, Current Limiting Time Delay, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 0.4 A, 600 V, 200 kAIC Interrupt, Class: CC, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size
Features
- Time delay compatible with inrush characteristic of small control transformers
- Current limitation at class CC levels provides maximum component short circuit current protection
- 200 kA interrupt rating provides high ratings at all circuit locations
- Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
- Nickel plated brass end caps
Specifications
ApplicationIndustrial Facilities and Factories, Safety and Security Systems, Line Protection, Small Control Transformers, Isolated and In-Line Fuse Holders Applications
Amperage Rating0.4 A
Body Size13/32 in Dia x 1-1/2 in L
Body TypeCylindrical
ClassCC
ElementDual
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating200 kAIC
MaterialMelamine Tube
Mounting TypeHolder
Rejection/Non-RejectionRejection
Response Time12 s at 200%
SeriesFNQ-R
Terminal TypeFerrule End
TypeCurrent Limiting Time Delay
Voltage Rating600 V
