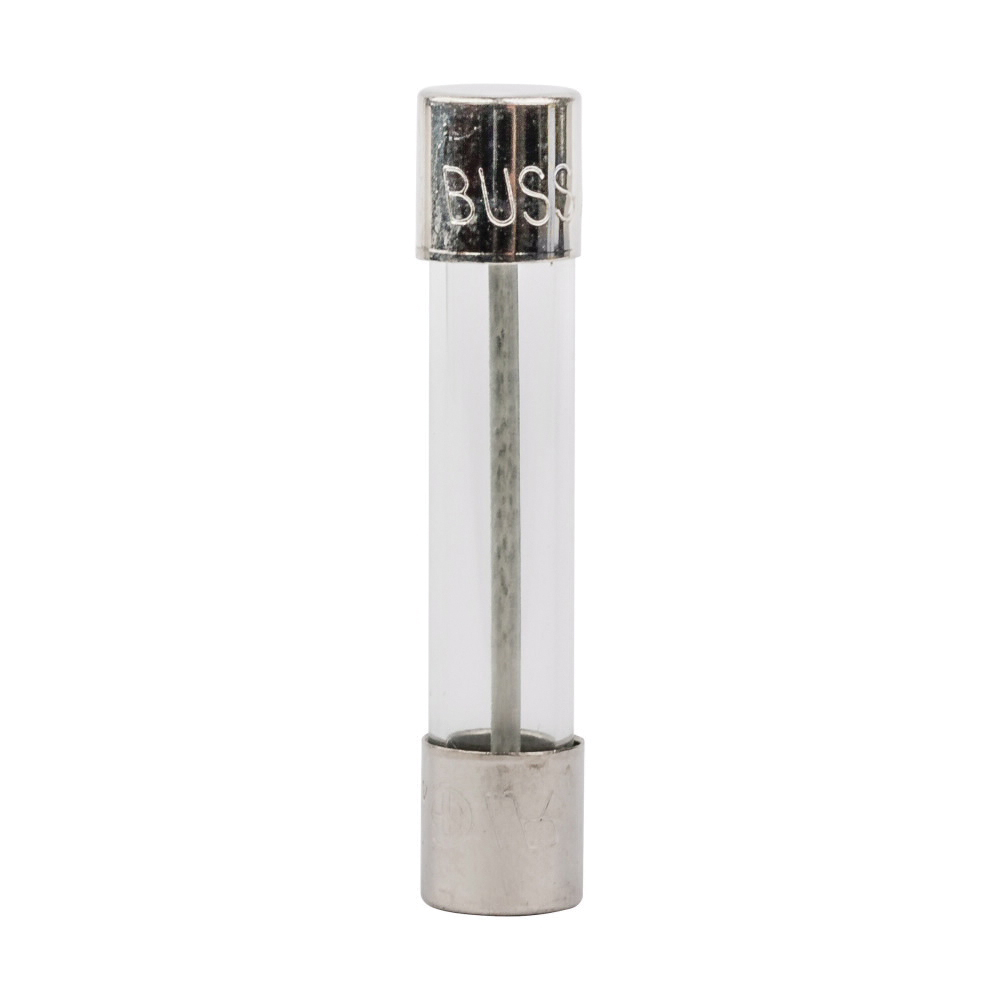

Edison BUSS AGC-20-R
Edison AGC-20-R Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 20 A, 32 VAC, 1 kA Interrupt, Cylindrical Body
Invoice description:
Fuse 1/4" X 1 1/4" Glass 5/pkg
UPC: 051712655095
Pack Size: 5
UNSPSC:
39121609
Manufacturer PN: AGC-20-R
$1.76 EA
Factory OrderEstimated to ship in 8 days
Edison Fast Acting Fuse, Small Dimension, Series: AGC, Non-Indicating, Non-Rejection, 20 A, 32 VAC, 1 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body
Features
- Fast acting for maximum component protection
- Wide amp/volt ratings allow versatility of protecting electronic circuits
- 1 kA at 32 VAC interrupt rating
- 60 min maximum at 135%, 120 sec maximum at 200% response time
Specifications
ApplicationElectronic Circuit Applications
Amperage Rating20 A
Body Size1/4 in Dia x 1-1/4 in L
Body TypeCylindrical
ElementSingle
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating1 kA
MaterialGlass
Mounting TypeHolder
Rejection/Non-RejectionNon-Rejection
Response Time60 min, 120 s
SeriesAGC
Terminal TypeFerrule
TypeSmall Dimension
Voltage Rating32 VAC
Additional Information
Standards/ApprovalRoHS Compliant|UL 248-14|Guide JDYX|UL File No. E1
Country of OriginTW
