Edison BUSS AGA-3

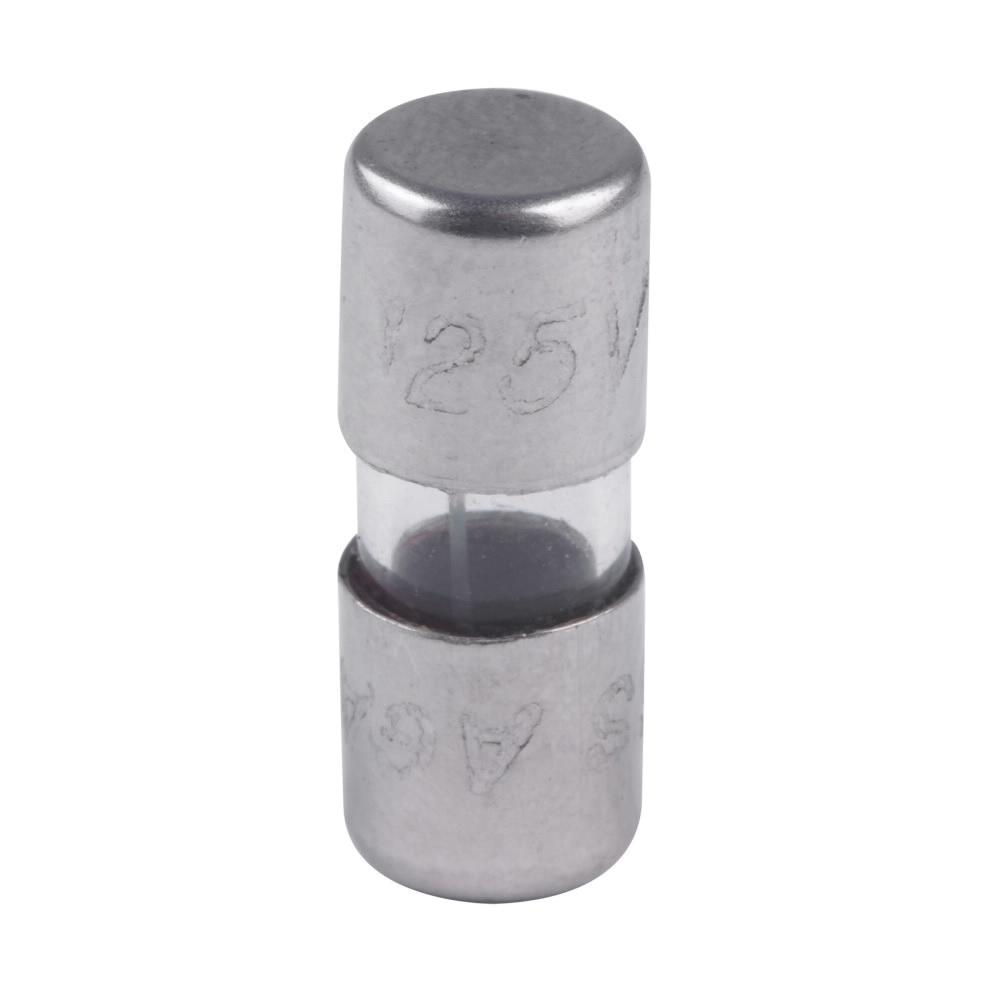

Edison AGA-3 Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 3 A, 250 VAC, 100 A Interrupt, Cylindrical Body
Invoice description:
Fuse 1/4" X 5/8 Glass 5/pkg
UPC: 051712703406
UNSPSC:
39121607
Manufacturer PN: AGA-3
$8.37 EA
Factory OrderEstimated to ship in 7 days
Edison Fast Acting Fuse, Small Dimension, Series: AGA, Non-Indicating, Non-Rejection, 3 A, 250 VAC, 100 A Interrupt, 4 hr, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 5/8 in L Body
Features
- Fast acting for maximum component protection
- Size rejects insertion of other fuse types
- 200 A at 250 VAC interrupt rating
- 4 hr minimum at 100%, 60 min maximum at 135%, 120 sec maximum at 200% response time
Specifications
ApplicationElectronic Circuit Applications
Amperage Rating3 A
Body Size1/4 in Dia x 5/8 in L
Body TypeCylindrical
ElementSingle
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating100 A
MaterialGlass
Mounting TypeHolder
Rejection/Non-RejectionNon-Rejection
Response Time4 hr, 60 min, 120 s
SeriesAGA
Terminal TypeFerrule
TypeSmall Dimension
Voltage Rating250 VAC
Additional Information
Standards/ApprovalUL Listed|Standard 248-14, Guide JDYX|UL File No.
Country of OriginTW
