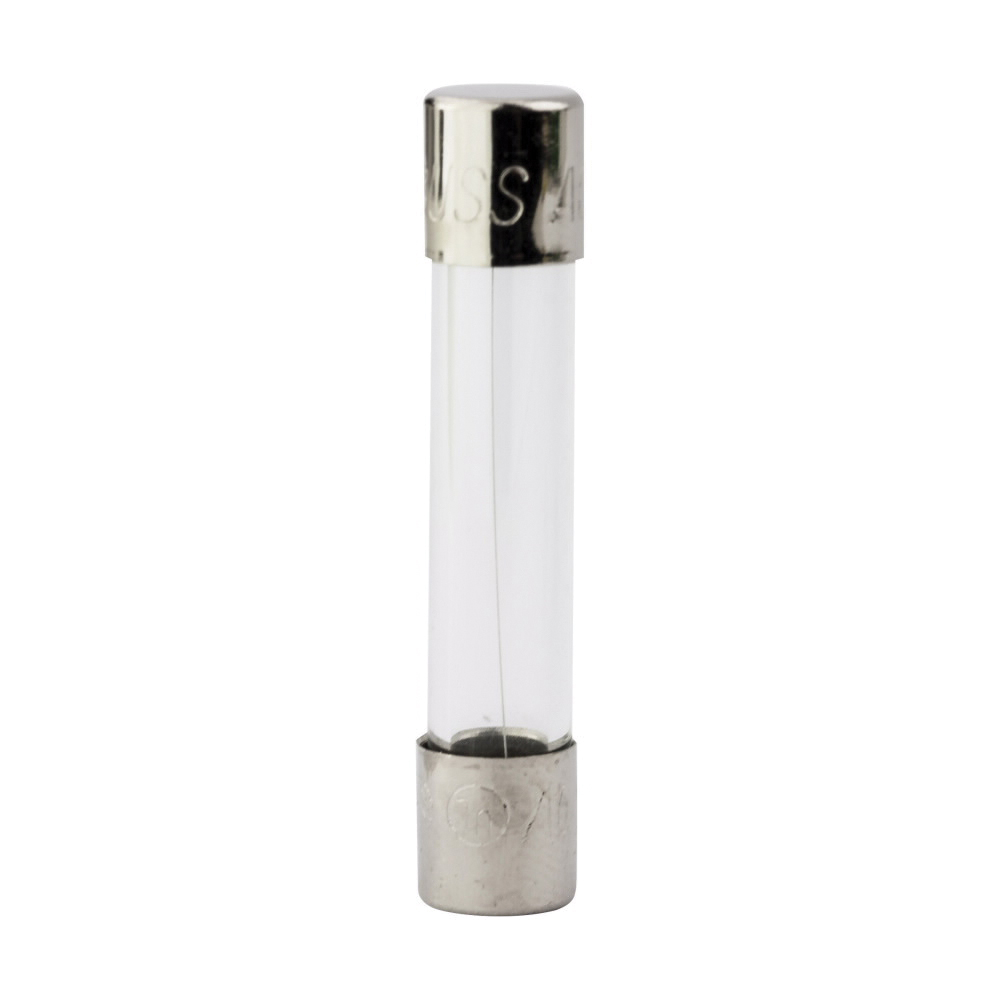

Bussmann BUSS AGC-3-R
Bussmann AGC-3-R Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 3 A, 250 VAC, 100 A, 10 kA Interrupt, Cylindrical Body
Invoice description:
Fuse 1/4" X 1 1/4" Glass 5/pkg
UPC: 051712655118
UNSPSC:
39121607
Manufacturer PN: AGC-3-R
$1.50 EA
Factory OrderEstimated to ship in 8 days
Bussmann Fast Acting Fuse, Small Dimension, Series: AGC, Non-Indicating, Non-Rejection, 3 A, 250 VAC, 100 A, 10 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body
Features
- Fast acting for maximum component protection
- Wide amp/volt ratings allow versatility of protecting electronic circuits
- 100 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- 60 min maximum at 135%, 120 sec maximum at 200% response time
Specifications
ApplicationElectronic Circuit Applications
Amperage Rating3 A
Body Size1/4 in Dia x 1-1/4 in L
Body TypeCylindrical
ElementSingle
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating100 A, 10 kA
MaterialGlass
Mounting TypeHolder
Rejection/Non-RejectionNon-Rejection
Response Time60 min, 120 s
SeriesAGC
Terminal TypeFerrule
TypeSmall Dimension
Voltage Rating250 VAC
Additional Information
Standards/ApprovalRoHS Compliant|CSA Certified|CSA Class 1422-01|UL
Country of OriginTW
