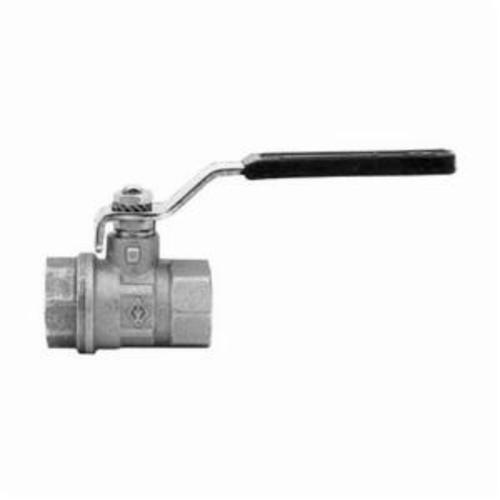

Dixon DIXV FBV100

Dixon FBV100 Imported Ball Valve, 1 in Nominal, FNPT End Style, Forged Brass Body, Full Port, PTFE Seat/Seal/Thrust Washer Softgoods

UNSPSC:
Manufacturer PN: FBV100
$55.82 EA
Factory Order
Estimated to ship in 7 days
QTY:


Dixon Ball Valve, Imported, Series: FBV, 1 in Nominal, FNPT End Style, 600 psi WOG, 150 psi WSP Pressure, 366 deg F, Full Port, Media: Gas, Oil, Steam and Water, Manual Actuator, Brass Ball, Forged Brass Body, PTFE Seat/Seal/Thrust Washer Softgoods, Polished Chrome Ball

  • Features

  • Blow out proof stem
  • Plated steel handle
  • PTFE seat, seal and thrust washer

Specifications

Actuator TypeManual
Ball MaterialBrass
Body MaterialForged Brass
End StyleFNPT
FinishPolished Chrome Ball
MediaGas, Oil, Steam and Water
Nominal Size1 in
Port TypeFull
Pressure Rating600 psi WOG, 150 psi WSP
SeriesFBV
Softgoods MaterialPTFE Seat/Seal/Thrust Washer
Temperature Rating366 deg F
TypeImported
