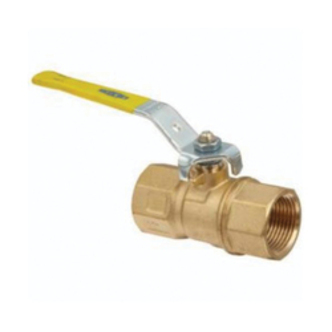

Dixon DIXV BV50

Dixon BV50 Ball Valve, 1/2 in Nominal, FNPT End Style, Forged Brass Body, Standard Port, PTFE Seat/Seal/Thrust Washer Softgoods

Invoice description: 1/2 Stnd Port Ball Valve

UNSPSC: 40141607
Manufacturer PN: BV50
Factory Order
Estimated to ship in 7 days
--Price Unavailable--


Dixon Ball Valve, 1/2 in Nominal, FNPT End Style, 600 psi WOG, 100 psi WSP Pressure, 366 deg F, Standard Port, Media: Gas, Oil, Steam and Water, Forged Brass Body, PTFE Seat/Seal/Thrust Washer Softgoods, Polished Chrome

  • Features

  • Blow out proof stem
  • Steel plated handle
  • PTFE seat, seal and thrust washer

Specifications

Body MaterialForged Brass
End StyleFNPT
FinishPolished Chrome
MediaGas, Oil, Steam and Water
Nominal Size1/2 in
Port TypeStandard
Pressure Rating600 psi WOG, 100 psi WSP
Softgoods MaterialPTFE Seat/Seal/Thrust Washer
Temperature Rating366 deg F
