Dixon DIXV BBLV50

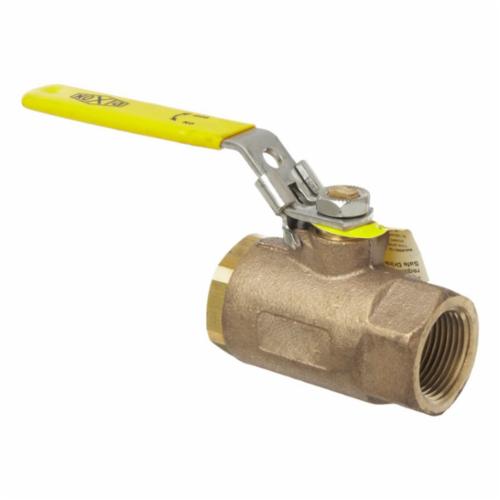

Dixon BBLV50 Ball Valve, 1/2 in Nominal, FNPT End Style, Brass Body, Full Port, RPTFE Stem Softgoods, Domestic

UNSPSC: 40141607
Manufacturer PN: BBLV50
$54.24 EA
Factory Order
Estimated to ship in 13 days
QTY:


Dixon Ball Valve, 1/2 in Nominal, FNPT End Style, 600 psi WOG, 150 psi WSP Pressure, Full Port, Media: Gas, Oil, Steam and Water, Locking Handle Actuator, Polished Chrome Brass Ball, Brass Body, RPTFE Stem Softgoods, Bronze, 3-1/4 in L x 6-15/16 in W, Domestic

  • Features

  • Stainless steel sliding lock mechanism secures handle in open or closed position, can be padlocked opened or closed
  • Full port and standard port valves are both repairable
  • Blow-out proof RPTFE stem
  • Plated steel handles and nuts with vinyl sleeves

Specifications

Actuator TypeLocking Handle
Ball MaterialPolished Chrome Brass
Body MaterialBrass
Dimensions3-1/4 in L x 6-15/16 in W
Domestic/ImportDomestic
End StyleFNPT
FinishBronze
MediaGas, Oil, Steam and Water
Nominal Size1/2 in
Port TypeFull
Pressure Rating600 psi WOG, 150 psi WSP
Softgoods MaterialRPTFE Stem
