3M 3MT 58429

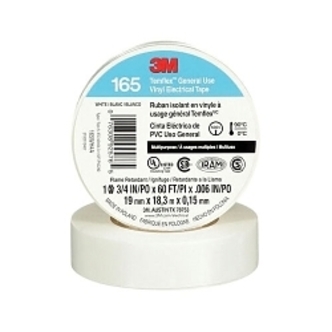

3M 7100169491 165 Multi-Purpose Tape, 60 ft L x 3/4 in W, 6 mil THK, Vinyl, Rubber Adhesive, PVC Backing, White
Invoice description:
Tape Electrical Temflex 165 Vinyl White
In stock
(12)
3M, 7100169491, Tape, Multi-Purpose, Series: 165, 60 ft Length, 3/4 in Width, 6 mil Thickness, Vinyl, White, Rubber Adhesive, PVC Backing, 18 in-oz Adhesion Strength, 600/1000 V, 1000 V/mil Dielectric Strength, 13 in-lb Tensile Strength, 194 deg F Maximum Operating, 32 deg F Minimum Operating, Specifications Met: CSA C22.2 No. 197 File No. 048769 Class 9052-02/OANZ File No. E129200/VDE Certified/UL 510
Features
- Resists abrasion, moisture, alkalis, solvents and acids
- Flame-retardant and inhibits the corrosion of electrical conductors
- Made of durable PVC
- Compatible with rubber and synthetic splicing compounds
- Suitable for moderate indoor and weather protected outdoor uses
- Color coding for phase identification, wire marking and safety
- Electrical insulation for wire and cable splices rated up to 600 V
- Harnessing and bundling of wires and cables
- Wire pulling and fishing
Specifications
ApplicationResidential, Commercial and Manufacturing (OEM) Environments
Adhesion Strength18 in-oz
Adhesive MaterialRubber
Backing MaterialPVC
ColorWhite
Dielectric Strength1000 V/mil
Length60 ft
Material TypeVinyl
Maximum Operating Temperature194 deg F
Minimum Operating Temperature32 deg F
Series165
Specifications MetCSA C22.2 No. 197 File No. 048769 Class 9052-02/OANZ File No. E129200/VDE Certified/UL 510
Tensile Strength13 in-lb
Thickness6 mil
TypeMulti-Purpose Flame-Retardant
Voltage Rating600/1000 V
Width3/4 in
Additional Information
Warranty5 years Shelf Life
Standards/ApprovalRoHS Compliant|REACH Compliant
Country of OriginPL
Specification Sheet
