Scotch 3MT 27

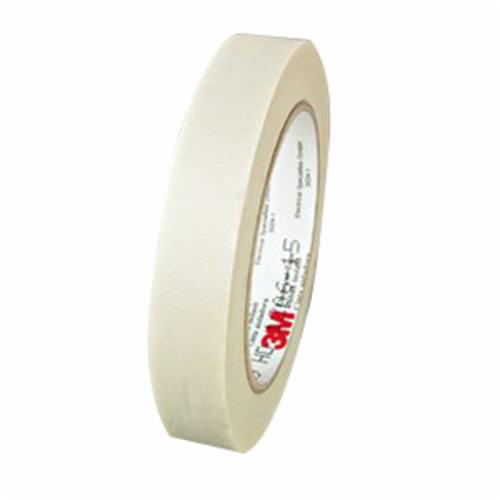

Scotch 7000005814 Cloth Tape, 66 ft L x 1/2 in W, 7 mil THK, Glass Cloth, Thermosetable Rubber Adhesive, White
Invoice description:
Tape Glass Cloth 1/2"x66 ' White
UPC: 054007150664
Pack Size: 10
UNSPSC:
15121804
Manufacturer PN: 7000005814
$22.46 RL
In stock
(13)
Scotch, 7000005814, Cloth Tape, 66 ft Length, 1/2 in Width, 7 mil Thickness, Glass Cloth, White, 3 in Diameter Core, Thermosetable Rubber Adhesive, 30 in-oz Adhesion Strength, 600 VAC, 3000 V/mil Dielectric Strength, 150 in-lb Tensile Strength, 302 deg F Maximum Operating, 32 deg F Minimum Operating, Specifications Met: UL Listed, CSA Certified
Features
- Insulating electric and induction type furnace power supply leads
- Insulating motor lead connectors, switchers and controls for furnaces and ovens
- Insulation in coil wrapping outer wrap
- Provides heat stable insulation for hot spot applications
- Securing systems requiring high mechanical strength and resistance to high temperatures
- Splicing wire SF and SFF rated 302 deg F (150 deg C), 356 deg F (180 deg C)
Specifications
ApplicationFor coil cover, anchor, banding and core, layer and crossover insulation applications
Adhesion Strength30 in-oz
Adhesive MaterialThermosetable Rubber
Backing MaterialGlass Cloth
ColorWhite
Core Diameter3 in
Dielectric Strength3000 V/mil
Length66 ft
Material TypeGlass Cloth
Maximum Operating Temperature302 deg F
Minimum Operating Temperature32 deg F
Specifications MetUL Listed, CSA Certified
Tensile Strength150 in-lb
Thickness7 mil
TypePremium-Grade Special Use
Voltage Rating600 VAC
Width1/2 in
Additional Information
Standards/ApprovalCSA Certified|UL Listed|RoHS 2011/65/EU Compliant
Country of OriginUS
