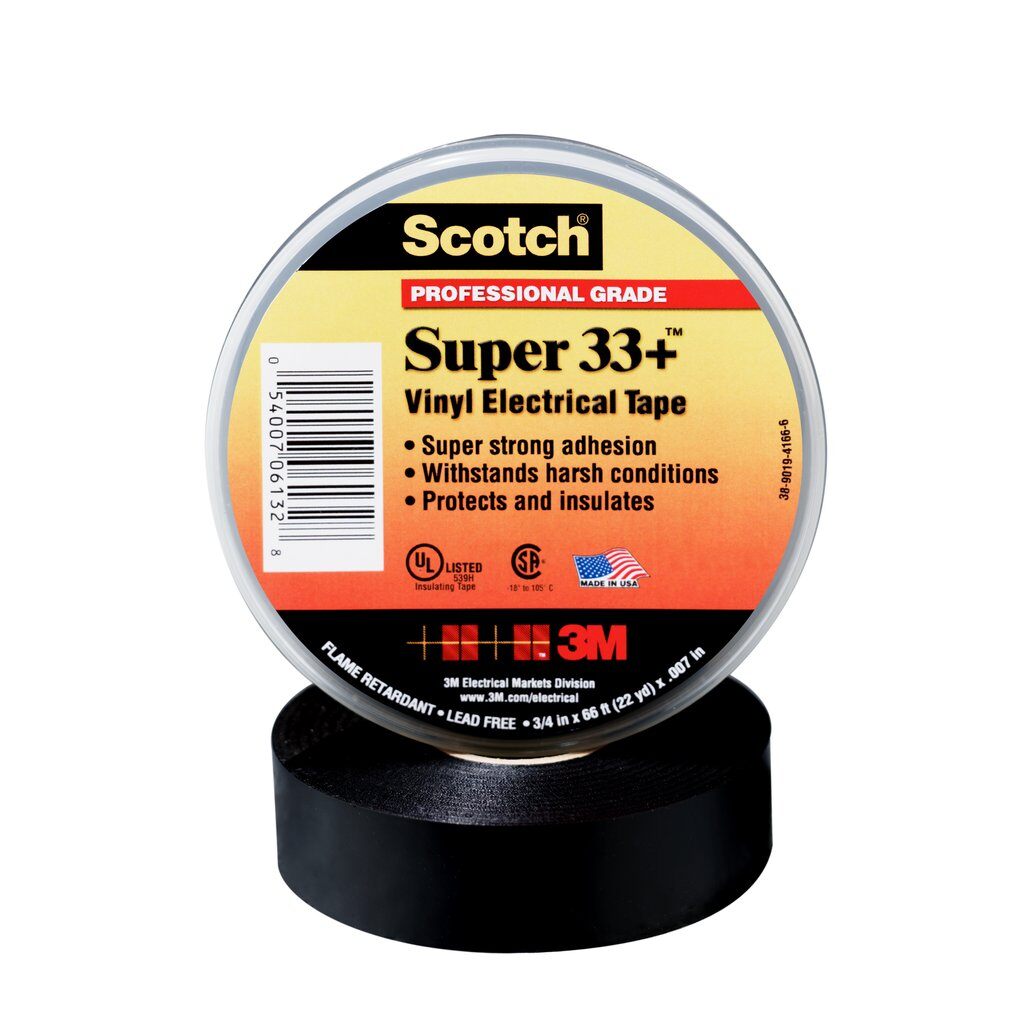

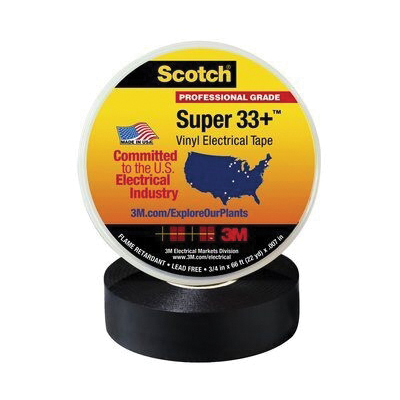

3M 7100002398 Premium Grade Tape, 66 ft L x 3/4 in W, 7 mil THK, PVC, Rubber Adhesive, Black
Invoice description:
Tape Electrical Vinyl 3/4"x76'
In stock
(1155)
3M, 7100002398, Tape, Premium Grade, 66 ft Length, 3/4 in Width, 7 mil Thickness, PVC, Black, Rubber Adhesive, 28 in-oz Adhesion Strength, 600 VAC, 1150 V/mil Dielectric Strength, 15 in-lb Tensile Strength, 221 deg F Maximum Operating, 32 deg F Minimum Operating, Specifications Met: ASTM D-3005 Type 1
Features
- Compatible with solid dielectric cable insulations
- Compatible with rubber and synthetic splicing compounds, as well as epoxy and polyurethane resins
- Inhibits corrosion of electrical conductors
- Excellent resistance to abrasion, moisture, alkalis, acids, corrosion and varying weather conditions
- Provides moisture tight electrical and mechanical protection with minimum bulk
- Premium grade, 7 mil thick, all weather vinyl insulating tape
- Primary electrical insulation for all wire and cable splices rated up to 600 V and up to 105 deg C (220 deg F)
- Primary electrical insulation for 600 VAC bus applications, and protective jacketing for low and high voltage bus
- Protective jacketing for high voltage cable splices and repairs
- Harnessing of wires and cables
Specifications
ApplicationIndoor/Outdoor Applications
Adhesion Strength28 in-oz
Adhesive MaterialRubber
Backing MaterialPVC
ColorBlack
Dielectric Strength1150 V/mil
Length66 ft
Material TypePVC
Maximum Operating Temperature221 deg F
Minimum Operating Temperature32 deg F
Specifications MetASTM D-3005 Type 1
Tensile Strength15 in-lb
Thickness7 mil
TypePremium Grade
Voltage Rating600 VAC
Width3/4 in
Additional Information
Standards/ApprovalARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified|VDE 0340 TEIL 3-1, SS 404 09 75
Country of OriginUS
