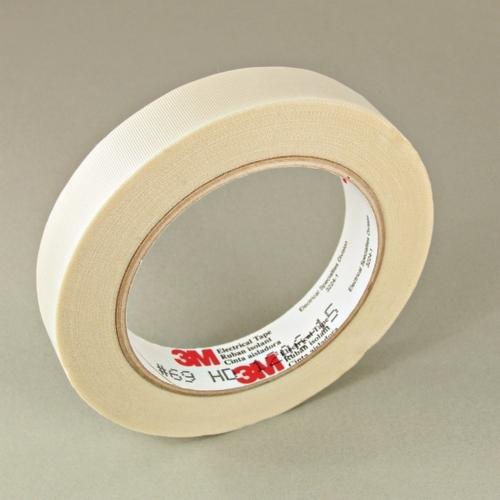

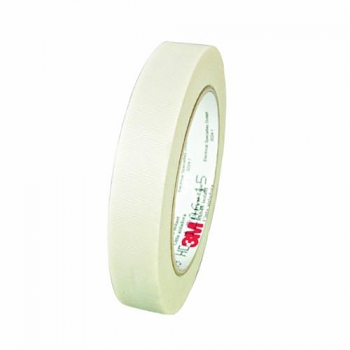

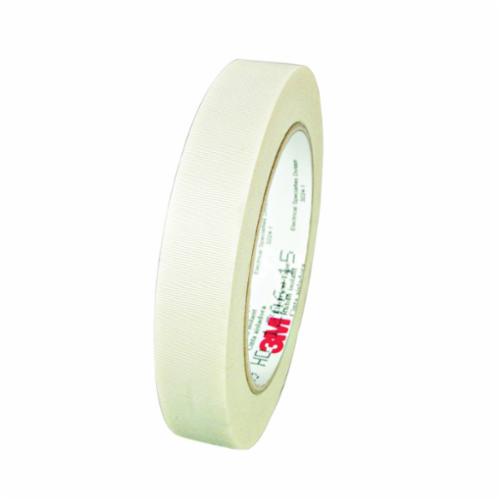

3M 3MT 27494

3M, 7000132177, Cloth Tape, 36 yd Length, 1 in Width, 7 mil Thickness, Paper Core, White, 3 in Diameter Core, Silicon Adhesive, Glass Cloth Backing, 40 in-oz Adhesion Strength, 600 VAC, 3000 VAC Dielectric Strength, 180 in-lb Tensile Strength, 392 deg F Maximum Operating, Specifications Met: UL Listed, CSA Certified

• Features

• Reinsulating and repairing coils on mining machines
• Securing high temperature, non-psa insulation (such as asbestos and glass) in high temperature areas
• Insulating splices made on SA type wire in heat treat areas
• Especially suited to high temperature applications
• Used in a variety of coil/transformer and motor applications, including an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold down, end turn and lead anchor and connection
• Thermosetting, pressure sensitive silicon adhesive provides an increased bond at high temperatures
• Glass cloth backing optimally resists shrinking and burning

Additional Information

Documents

• Specification Sheet
