Precision Twist Drill UTD 047112

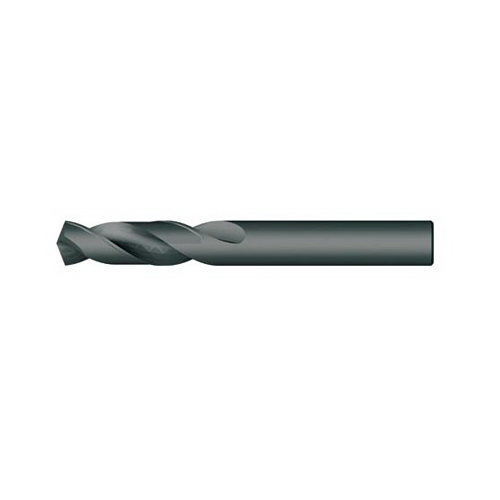

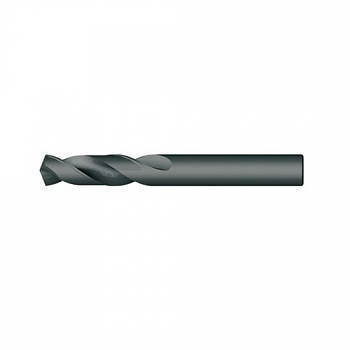

Precision Twist Drill 6000986 4ASM Heavy Duty Screw Machine Drill, 11.2 mm Drill - Metric, 0.4409 in Drill - Decimal Inch, HSS, Steam Tempered
Factory Order
Precision Twist Drill Screw Machine Drill, Heavy Duty, Series: 4ASM, Metric/Imperial, 11.2 mm Drill - Metric, 0.4409 in Drill - Decimal Inch, 95 mm Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 47 mm Flute Length, 11.2 mm Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Tempered, Dark Gray, Applicable Materials: Steels with Low to High Resistance
Features
- Low thrust design self-centering split point for easier penetration
- Steam oxide surface treatment for increased wear resistance and lubricity
Specifications
Applicable MaterialsSteels with Low to High Resistance
ColorDark Gray
Cutting Depth2.5XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.4409 in
Drill Size - Metric11.2 mm
FinishSteam Tempered
Flute Length47 mm
Flute TypeSpiral
MaterialHSS
Number of Flutes2
Overall Length95 mm
Point Angle135 deg
Point TypeSplit/Self-Centering
Series4ASM
Shank Size11.2 mm
Shank TypeStraight
TypeHeavy Duty
