Alfa USA ALFA SM50215 9/32

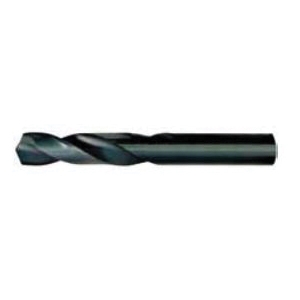

Alfa USA SM50215 Type C NAS-907 Heavy Duty Short Length Drill Bit, 9/32 in Drill - Fraction, 0.2812 in Drill - Decimal Inch, HSS, Black Oxide
Invoice description:
Bit Drill Stubby 9/32
In stock
(80)
Alfa USA Short Length Drill Bit, Type C NAS-907 Heavy Duty, Imperial, 9/32 in Drill - Fraction, 0.2812 in Drill - Decimal Inch, 2-11/16 in Overall Length, 1-1/2 in Cutting Depth, Spiral Flute, 1-1/2 in Flute Length, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Black Oxide, Applicable Materials: Iron and Steel
Features
- Heavy duty construction and shorter length, performs well in stationary and portable drilling
- Shorter flute and overall length increases the rigidity resulting in less deflection, better hole accuracy and longer tool life
- 135 deg split point is self-centering and reduces thrust
Specifications
Applicable MaterialsIron and Steel
Cutting Depth1-1/2 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.2812 in
Drill Size - Fraction9/32 in
FinishBlack Oxide
Flute Length1-1/2 in
Flute TypeSpiral
MaterialHSS
Overall Length2-11/16 in
Point Angle135 deg
Point TypeSplit/Self-Centering
Shank TypeStraight
TypeType C NAS-907 Heavy Duty
Additional Information
Country of OriginUS
