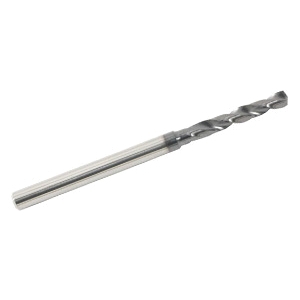

GARR 00114 High Performance Short Length Drill Bit, 0.84 mm Drill - Metric, 0.033 in Drill - Decimal Inch, Submicron Grain Solid Carbide, TiAlN Coated
Invoice description:
Drill Stub 0.84mm (0.033) Tialn Crb 3xd
Factory Order
GARR Short Length Drill Bit, High Performance, Series: 1550H, Metric/Imperial, 0.84 mm Drill - Metric, 0.033 in Drill - Decimal Inch, 50 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 4.5 mm Flute Length, 3 mm Shank, 140 deg Point, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, TiAlN Coated, Applicable Materials: Cobalt Based Alloy, High Nickel, High Temperature Alloy, Stainless Steel and Tool Steel
Features
- 30 deg helix for better chip evacuation
- Live tooling recommended on lathe processes
- L3 reach = L2 + 0.075 in (2 mm)
Specifications
Applicable MaterialsCobalt Based Alloy, High Nickel, High Temperature Alloy, Stainless Steel and Tool Steel
Cutting Depth3XD
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.033 in
Drill Size - Metric0.84 mm
FinishTiAlN Coated
Flute Length4.5 mm
Flute TypeSpiral
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length50 mm
Point Angle140 deg
Series1550H
Shank Size3 mm
TypeHigh Performance
Additional Information
Country of OriginUS
