Precision Twist Drill UTD 033200

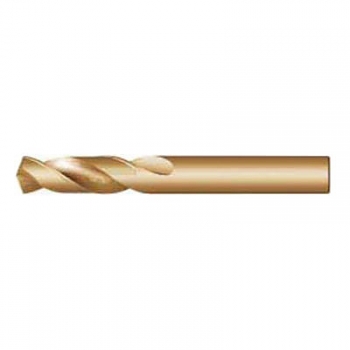

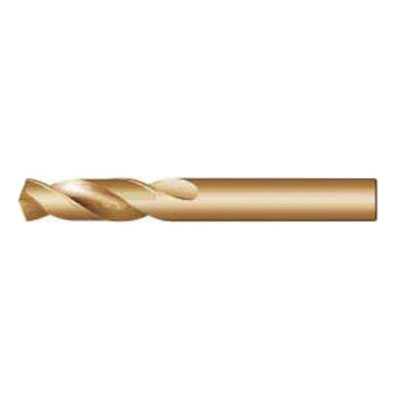

Precision Twist Drill 6000979 4ASMCO Heavy Duty Screw Machine Drill, 12 mm Drill - Metric, 0.4724 in Drill - Decimal Inch, HSS-E, Bronze
Factory Order
Precision Twist Drill Screw Machine Drill, Heavy Duty, Series: 4ASMCO, Metric/Imperial, 12 mm Drill - Metric, 0.4724 in Drill - Decimal Inch, 102 mm Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 51 mm Flute Length, 12 mm Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS-E Cutting Edge, HSS-E, Bronze, Applicable Materials: Steels with Low to High Resistance
Features
- Low thrust design self-centering split point for easier penetration
- Cobalt base material with bronze oxide for wear resistance and lubricity
Specifications
ApplicationFor general drilling applications
Applicable MaterialsSteels with Low to High Resistance
Cutting Depth2.5XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS-E
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.4724 in
Drill Size - Metric12 mm
FinishBronze
Flute Length51 mm
Flute TypeSpiral
MaterialHSS-E
Number of Flutes2
Overall Length102 mm
Point Angle135 deg
Point TypeSplit/Self-Centering
Series4ASMCO
Shank Size12 mm
Shank TypeStraight
TypeHeavy Duty
