Starrett LSS 711MFSZ

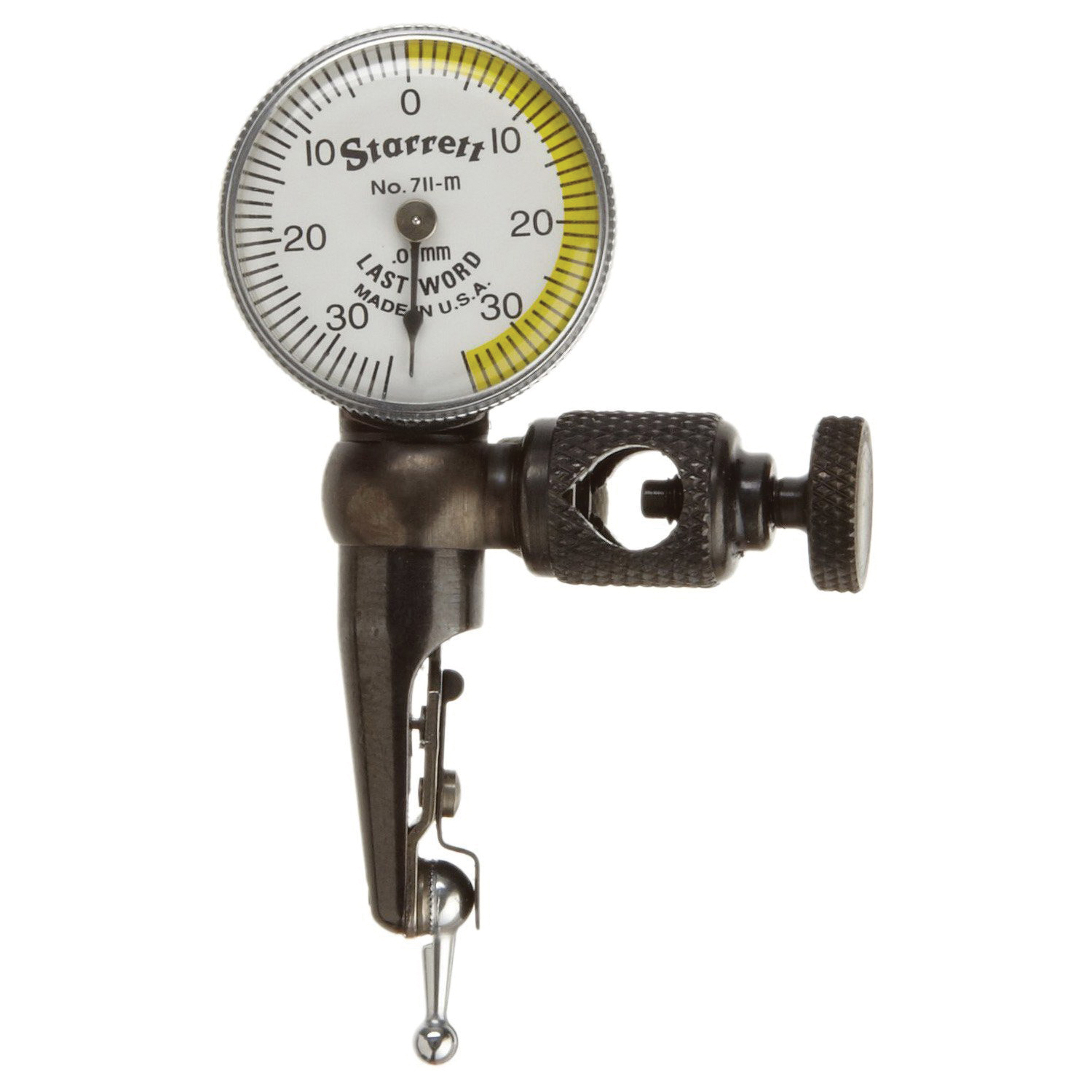

Starrett 711MFSZ 711M Last Word Metric Shaded Dial Test Indicator With Body Clamp, 0.7 mm Measuring, 0 to 35 to 0 Dial Reading, Graduations 0.01 mm, 15/16 in Dial, 5/32 in L Tip
Invoice description:
Last Word Test Indicator S With Cases Compact
Factory Order
Starrett Dial Test Indicator, Metric Shaded Dial, Series: 711M Last Word, 0.7 mm Measuring, 0 to 35 to 0 Dial Reading, Graduations: 0.01 mm, 15/16 in Dial, White/Yellow Dial, 5/32 in L Tip, 1/8 in Diameter Ball, Steel, Black Polished
Features
- Indicators are furnished with one interchangeable steel contact point, PT07087
- Their small size and variety of attachments will handle all jobs with ease and accuracy
- A very useful feature is the shaded dial - when used with a mirror, in a jig bore application, the operator will always know the correct reading
- Variety of attachments available to suit the application
- Ideal for precise measurements in all machining, layout and inspection work
- Easy reading dials, half yellow for clarity
- Hard chrome plated ratchet contact point
- Smooth, jeweled lever action
- Swiveling tubular body
- Positive reversing switch
Specifications
Ball Diameter1/8 in
Dial ColorWhite/Yellow
Dial Reading0 to 35 to 0
Dial Size15/16 in
FinishBlack Polished
Graduations0.01 mm
MaterialSteel
Measuring Range0.7 mm
Series711M Last Word
Tip Size5/32 in L
TypeMetric Shaded Dial
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
