Starrett LSS 708BCZ W/SLC

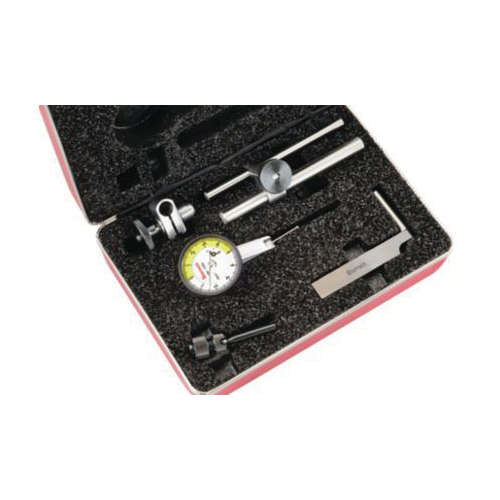

Starrett 708BCZ W/SLC Balanced Standard Dial Test Indicator Set, 0.2 in Measuring, 0 to 5 to 0 Dial Reading, Graduations 0.0001 in, 1-3/8 in Dial, 13/16 in L Tip
Invoice description:
Dial Test Indicators Wit H Dovetail Mounts Wi
Factory Order
Starrett Dial Test Indicator Set, Balanced Standard, Series: 708 Series, 0.2 in Measuring, 0 to 5 to 0 Dial Reading, Graduations: 0.0001 in, 1-3/8 in Dial, White Dial, 13/16 in L Tip, 0.078 in Diameter Ball, Steel, Satin
Features
- These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts
- Three dovetail positioning mounts work with existing test indicator accessories
- Precision gear driven design with smooth, jeweled movement
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Contacts are frictionally adjustable and replaceable
- Revolution count hand for easy reading
- Angled head for better reading position
- Narrow body for in reach ability
- Satin chrome finish for durability
- Carbide contact point
Specifications
Ball Diameter0.078 in
Dial ColorWhite
Dial Reading0 to 5 to 0
Dial Size1-3/8 in
FinishSatin
Graduations0.0001 in
MaterialSteel
Measuring Range0.2 in
Series708 Series
Tip Size13/16 in L
TypeBalanced Standard
Additional Information
IncludesDovetail Body Clamp, Tool Post Holder, Swivel Post Snug With Dovetail Indicator Clamp, Snug/Rod Unit and Redemption Card For Standard Letter of Certification
Standards/ApprovalNIST|ISO Accuracy Spec|PROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
