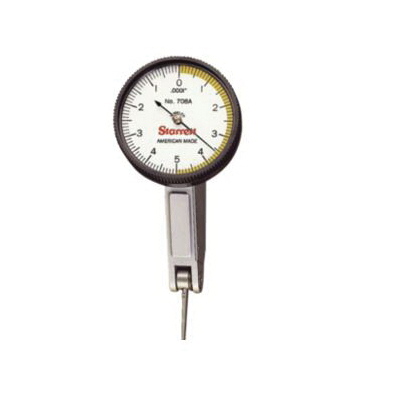

Starrett LSS 708AZ W/SLC
Starrett 708AZ W/SLC Balanced Standard Dial Test Indicator, 0.1 in Measuring, 0 to 5 to 0 Dial Reading, Graduations 0.0001 in, 1-3/8 in Dial, 13/16 in L Tip
Invoice description:
Dial Test Indicators Wit H Dovetail Mounts Wi
Factory Order
Starrett Dial Test Indicator, Balanced Standard, Series: 708 Series, 0.1 in Measuring, 0 to 5 to 0 Dial Reading, Graduations: 0.0001 in, 1-3/8 in Dial, White Dial, 13/16 in L Tip, 0.078 in Diameter Ball, Steel, Satin
Features
- Large 1-3/8 in (35mm) dial diameter
- Available with easy-to-read, white dial
- These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts
- Three dovetail positioning mounts work with existing test indicator accessories
- Precision gear driven design with smooth, jeweled movement
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Contacts are frictionally adjustable and replaceable
- Revolution count hand for easy reading
- Angled head for better reading position
- Narrow body for in reach ability
Specifications
Ball Diameter0.078 in
Dial ColorWhite
Dial Reading0 to 5 to 0
Dial Size1-3/8 in
FinishSatin
Graduations0.0001 in
MaterialSteel
Measuring Range0.1 in
Series708 Series
Tip Size13/16 in L
TypeBalanced Standard
Additional Information
IncludesRedemption Card For Standard Letter of Certification
Standards/ApprovalNIST, ISO Accuracy Spec|PROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
