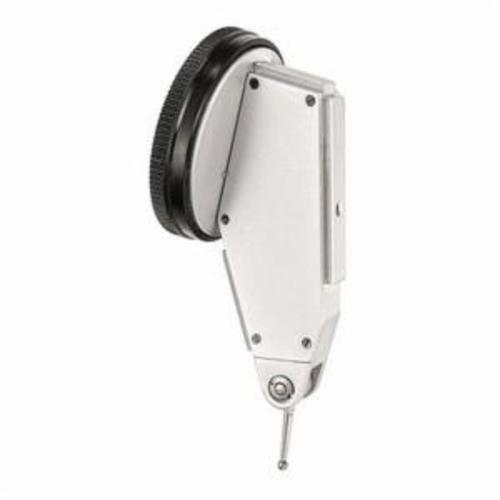

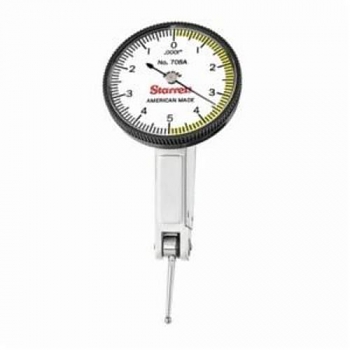

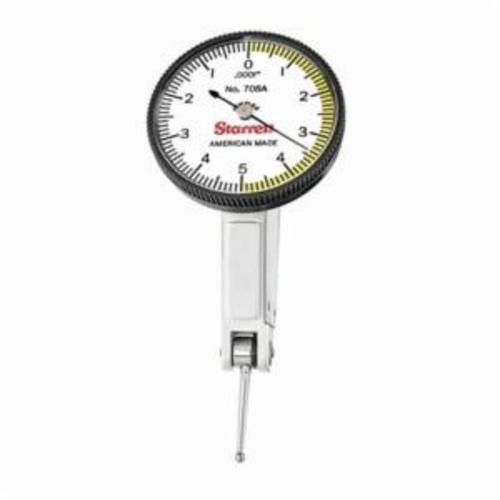

Starrett LSS 708AZ

Starrett 708AZ Horizontal Dial Test Indicator With Dovetail Mount, 0.01 in Measuring, 0 to 5 to 0 Dial Reading, Graduations 0.0001 in, 1-3/8 in Dial

Invoice description: Dial Test Indicators Wit H Dovetail Mounts Wi

UPC: 049659642124
UNSPSC: 41111630
Manufacturer PN: 708AZ
$606.32 EA
Factory Order
QTY:


Starrett Dial Test Indicator, Horizontal, Series: 708 Series, 0.01 in Measuring, 0 to 5 to 0 Dial Reading, Graduations: 0.0001 in, 1-3/8 in Dial, White Dial, 0.078 in Diameter Ball, Satin Chrome

  • Features

  • Inch reading indicators are available with easy-to-read, shaded white, red, or black dials - millimeter reading indicators with yellow dials
  • These precision test indicators offer an easy-to read angled head and the flexibility of three dovetail mounts
  • Three dovetail positioning mounts work with existing test indicator accessories
  • Precision gear-driven design with smooth, jeweled movement
  • Contact point reverses automatically, always maintaining clockwise hand rotation
  • Contacts are frictionally adjustable and replaceable
  • Revolution count hand for easy reading
  • Angled head for better reading position
  • Narrow body for inreach ability
  • For extreme accuracy, positioning the lever contact so that it is approximately 15 deg from being horizontal with the workpiece

Specifications

Ball Diameter0.078 in
Dial ColorWhite
Dial Reading0 to 5 to 0
Dial Size1-3/8 in
FinishSatin Chrome
Graduations0.0001 in
Measuring Range0.01 in
Series708 Series
TypeHorizontal

Additional Information

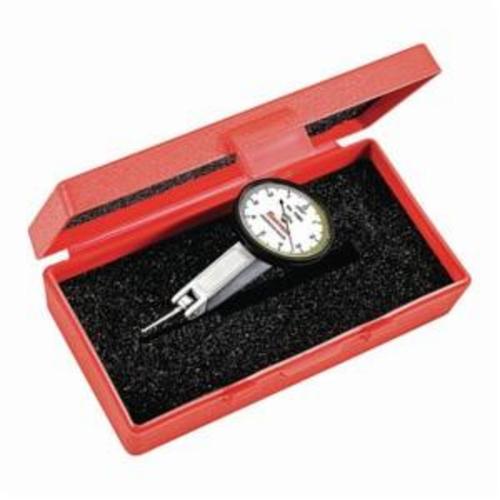

IncludesCase
Standards/ApprovalISO Certified|PROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
