Starrett LSS 708MAZ W/SLC

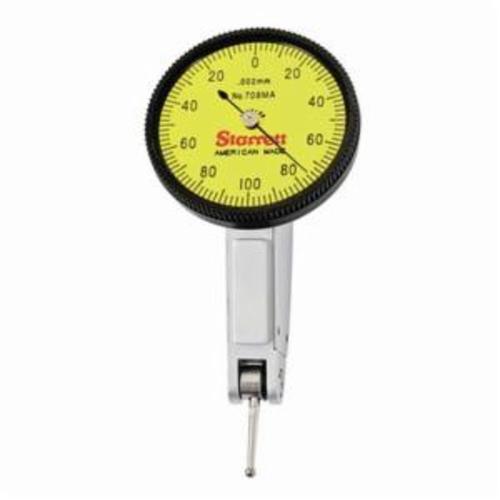

Starrett 708MAZ W/SLC Horizontal Dial Test Indicator With Dovetail Mount and Standard Letter of Certification, 0.2 mm Measuring, 0 to 100 to 0 Dial Reading, Graduations 0.002 mm, 1-3/8 in Dial
Invoice description:
Dial Test Indicators Wit H Dovetail Mounts Wi
Factory Order
Starrett Dial Test Indicator, Horizontal, Series: 708 Series, 0.2 mm Measuring, 0 to 100 to 0 Dial Reading, Graduations: 0.002 mm, 1-3/8 in Dial, Yellow Dial, 0.078 in Diameter Ball, Satin Chrome
Features

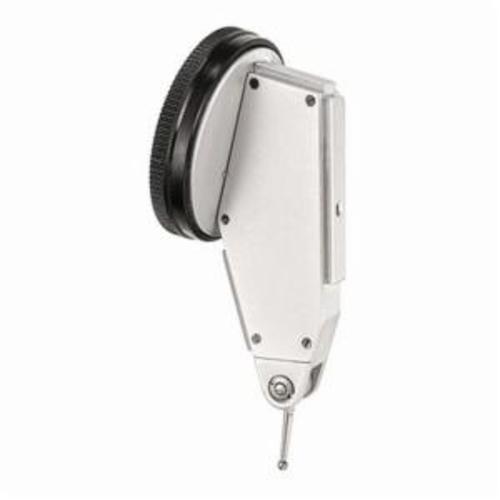

- These precision test indicators offer an easy-to read angled head and the flexibility of three dovetail mounts
- Three dovetail positioning mounts work with existing test indicator accessories
- Precision gear-driven design with smooth, jeweled movement
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Contacts are frictionally adjustable and replaceable
- Revolution count hand for easy reading
- Angled head for better reading position
- Narrow body for inreach ability
- Satin chrome finish for durability
- For extreme accuracy, positioning the lever contact so that it is approximately 15 deg from being horizontal with the workpiece
Specifications
Ball Diameter0.078 in
Dial ColorYellow
Dial Reading0 to 100 to 0
Dial Size1-3/8 in
FinishSatin Chrome
Graduations0.002 mm
Measuring Range0.2 mm
Series708 Series
TypeHorizontal
Additional Information

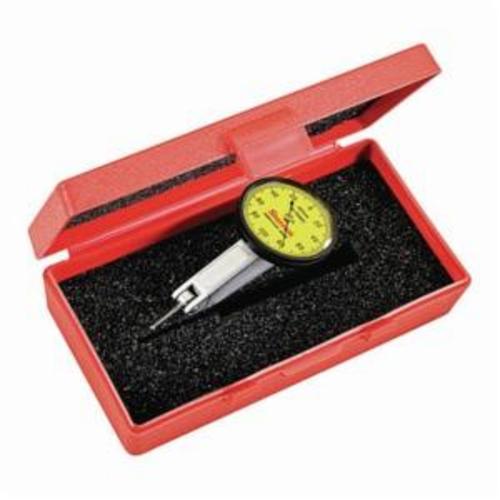

IncludesRedemption Card and Case
Standards/ApprovalISO Certified|PROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
Full Engineering Drawing
