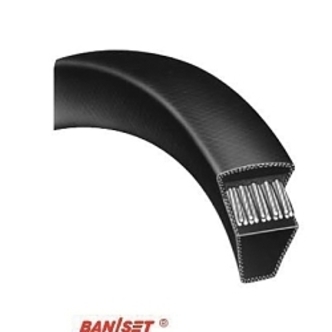

Bando VB 3V710

Bando Power Ace 3V710 Narrow Profile V-Belt, 3V Section, 0.38 in W Top, 71 in L Outside, 0.32 in THK, Rubber

Invoice description: Belt Wedge 3/8"x71" Max Flex

UPC: 649717370176
UNSPSC: 26111801
Manufacturer PN: 3V710
$13.74 EA
Factory Order
Estimated to ship in 7 days
QTY:


Bando Power Ace V-Belt, Narrow Profile, 3V Section, 0.38 in Top Width, 71 in Outside Length, 0.32 in Thickness, 2.65 in Minimum Pulley Dia, Rubber, Polyester Reinforced

  • Features

  • The special bias cut angle of the cover fabric reduces stress as the belt bends around sheaves, lowering heat build up that shortens belt life
  • Extra strong polyester cords are treated for fatigue, stretch resistance and adhesion to assure the longest possible belt life
  • The rubber compound of the body is engineered to maintain structural uniformity while maintaining the flexibility to reduce heat build up
  • Meets RMA standards for oil and heat resistance and static conductivity

Specifications

ApplicationIndustrial
MaterialRubber
Minimum Pulley Diameter2.65 in
Outside Length71 in
Reinforced MaterialPolyester
Section Size3V
Thickness0.32 in
Top Width0.38 in
TypeNarrow Profile

Additional Information

Standards/ApprovalRMA IP-22
