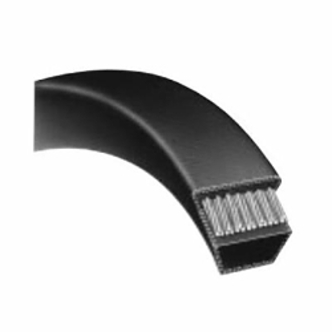

Bando VB 4L300

Bando Duraflex GL 4L300 Type FHP V-Belt, 1/2 in W Top, 30 in L Outside, 0.31 in THK, 4L Section, Rubber

Invoice description: Belt 1/2"x30

UPC: 649717445621
UNSPSC: 26111801
Manufacturer PN: 4L300
Factory Order
Estimated to ship in 7 days
--Price Unavailable--


Bando Duraflex GL V-Belt, Type FHP, 4L Section Size, 1/2 in Top Width, 30 in Outside Length, 0.31 in Thickness, 1 Ribs, 2.8 in Minimum Pulley Dia, -1 to 158 deg F, Rubber

  • Features

  • High strength polyester tensile cords provide maximum fatigue and stretch resistance
  • The cords are positioned, supported and protected by the insulation section for uniform load distribution
  • The special rubber compound in the body of the belt is formulated to flex around small sheaves and dissipate heat build-up to extend belt life
  • Oil, heat and ozone resistant bias cut, rubber impregnated fabric cover protects inner components for long life
  • Meets RMA standards for oil and heat resistance and static conductivity

Specifications

ApplicationFor shorter center distance, high speed fractional horsepower drives, common applications include HVAC equipment and appliance
MaterialRubber
Minimum Pulley Diameter2.8 in
Number of Ribs1
Outside Length30 in
Section Size4L
Temperature Range-1 to 158 deg F
Thickness0.31 in
Top Width1/2 in
TypeType FHP

Additional Information

Standards/ApprovalRMA Standard
