Bando VB 3L480

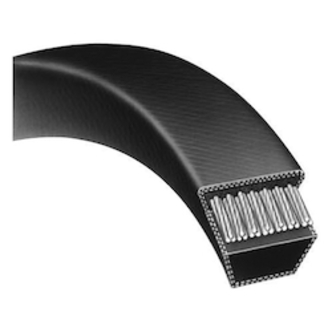

Bando Duraflex GL 3L480 Light Duty High Speed Drive V-Belt, 3L Section, 3/8 in W Top, 48 in L Outside, 0.22 in THK, Neoprene

Invoice description: V Belt 48"x3/8

UPC: 649717445171
UNSPSC: 26111801
Manufacturer PN: 3L480
Factory Order
Estimated to ship in 8 days
--Price Unavailable--


Bando Duraflex GL V-Belt, Light Duty High Speed Drive, 3L Section, 3/8 in Top Width, 48 in Outside Length, 0.22 in Thickness, 1-1/2 in Minimum Pulley Dia, Neoprene, Polyester Reinforced

  • Features

  • Oil, heat and ozone resistant bias cut, rubber impregnated fabric cover protects inner components for long life
  • High strength polyester tensile cords provide maximum fatigue and stress resistance
  • The cords are positioned, supported and protected by the insulation section for uniform load distribution
  • The special rubber compound in the body of the belt is formulated to flex around small sheaves and dissipate heat build up to extend belt life
  • Meets RMA standards for oil and heat resistance and static conductivity

Specifications

ApplicationIndustrial
MaterialNeoprene
Minimum Pulley Diameter1-1/2 in
Outside Length48 in
Reinforced MaterialPolyester
Section Size3L
Thickness0.22 in
Top Width3/8 in
TypeLight Duty High Speed Drive

Additional Information

Standards/ApprovalRMA IP-23
