TPI TPI ACU30-W

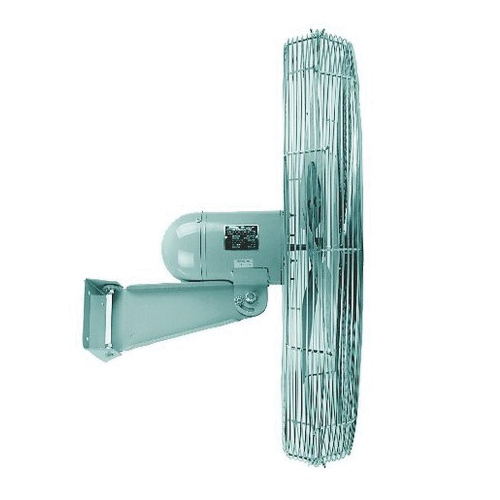

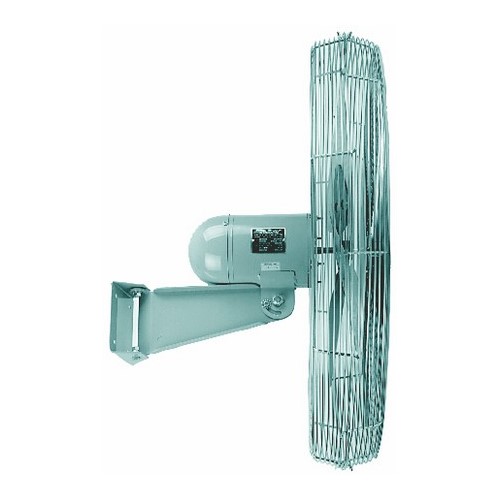

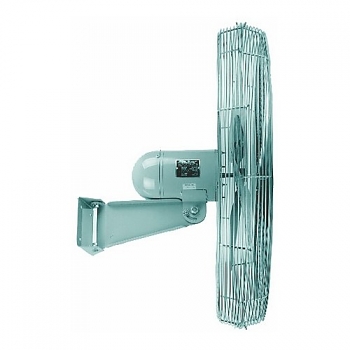

TPI ACU30WO 1-Phase Standard Unassembled Air Circulator, 30 in Blade, 4300 cfm High, 3800 cfm Low Flow Rate, 120 VAC, 2.7 A
Invoice description:
Fan 2spd 1/4hp 115v Bb 3 0"
UPC: 686334796439
UNSPSC:
40101602
Manufacturer PN: ACU30WO
$320.84 EA
Factory Order
Estimated to ship in 8 days
Estimated to ship in 8 days
TPI Air Circulator, 1-Phase Standard Unassembled, 30 in Blade, 4300 cfm High, 3800 cfm Low, 1100 rpm High, 800 rpm Low Speed, 1/4 hp Power, 120 VAC, 2.7 A, 2 Speed, Pull Chain Control, Paddle Blade, Aluminum Blade, Split Capacitor Motor, Steel Housing Material, Wall Mounting, SJT 12 ft Cord, 33-1/2 in Dia x 14-1/2 in D Dimensions, Domestic
Features
- Steel hub/spider aluminum paddle blades
- Coated steel guards
- Motor, blades, guard and mount are packed and shipped in a single UPS-able carton
- Ball bearing, totally enclosed, permanent split capacitor and permanently lubricated motor
- #48 motor frame
- 1/2 in Dia shaft motor
- Motor drive
- Gray color
- Oscillating model oscillates in a 90 deg arc or can be locked in a fixed position
- Metal gears in the oscillating mechanism allow the fan to operate at a maximum 30 deg downward tilt
Specifications
ApplicationIndoor-Industrial and Commercial Applications
Amperage Rating2.7 A
Blade MaterialAluminum
Blade Size30 in
Blade TypePaddle
Control TypePull Chain
Cord TypeSJT 12 ft
Dimensions33-1/2 in Dia x 14-1/2 in D
Domestic/ImportDomestic
Flow Rate4300 cfm High, 3800 cfm Low
Housing MaterialSteel
Motor TypeSplit Capacitor
Mounting TypeWall
Number of Speeds2
Power Rating1/4 hp
Speed1100 rpm High, 800 rpm Low
Type1-Phase Standard Unassembled
Voltage Rating120 VAC
Additional Information
Warranty1 Year
Standards/ApprovalcETLus Listed|OSHA Compliant|PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov
Country of OriginUS
