TPI TPI ACU30-P

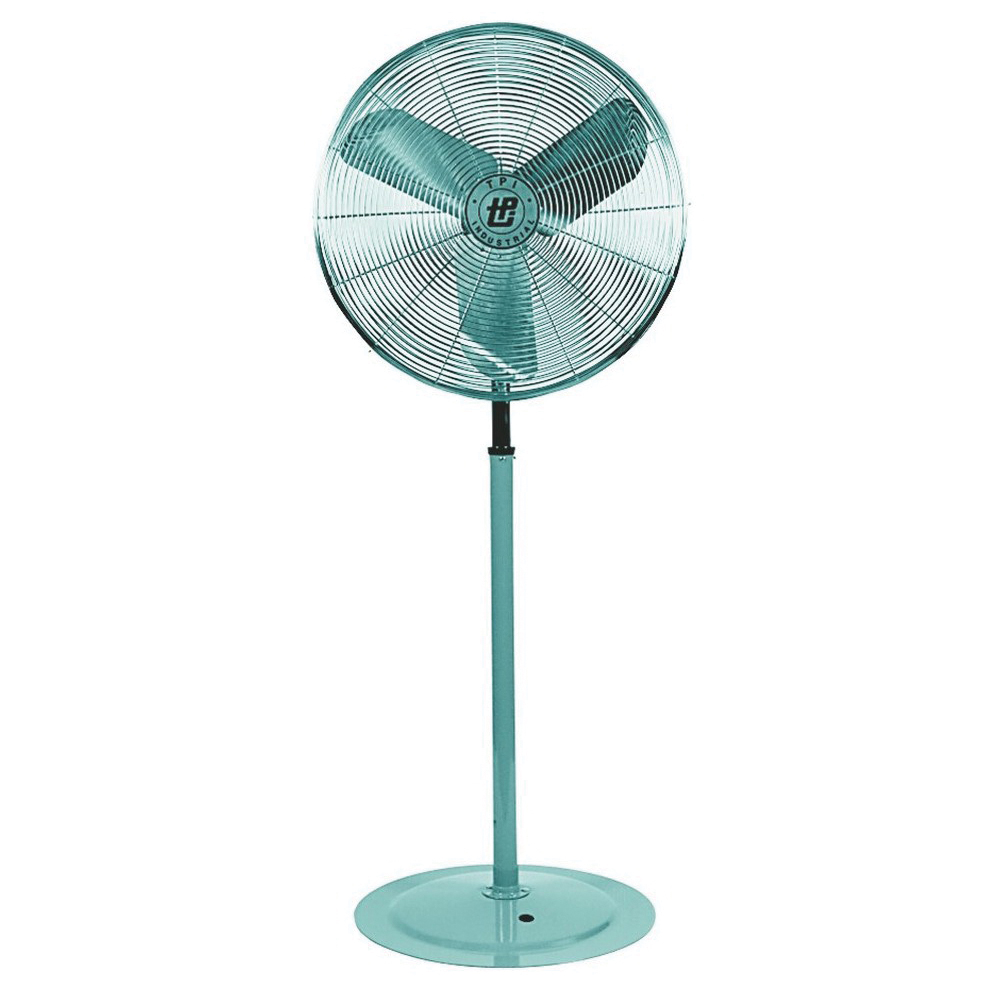

TPI ACU30P 1-Phase Standard Unassembled Air Circulator, 30 in Blade, 4300 cfm High, 3800 cfm Low Flow Rate, 120 VAC, 2.7 A
TPI Air Circulator, 1-Phase Standard Unassembled, 30 in Blade, 4300 cfm High, 3800 cfm Low, 1100 rpm High, 800 rpm Low Speed, 1/4 hp Power, 120 VAC, 2.7 A, 2 Speed, Pull Chain Control, Paddle Blade, Aluminum Blade, Split Capacitor Motor, Steel Housing Material, Surface Mounting, SJT 12 ft Cord, 33-1/2 in Dia x 14-1/2 in D Dimensions, Domestic
Features
- Steel hub/spider aluminum paddle blades
- Coated steel guards
- Motor, blades, guard and mount are packed and shipped in a single UPS-able carton
- Ball bearing, totally enclosed, permanent split capacitor and permanently lubricated motor
- #48 motor frame
- 1/2 in Dia shaft motor
- Motor drive
- Gray color
- 52 to 78 in pole adjustment
Specifications
ApplicationIndoor-Industrial and Commercial Applications
Amperage Rating2.7 A
Blade MaterialAluminum
Blade Size30 in
Blade TypePaddle
Control TypePull Chain
Cord TypeSJT 12 ft
Dimensions33-1/2 in Dia x 14-1/2 in D
Domestic/ImportDomestic
Flow Rate4300 cfm High, 3800 cfm Low
Housing MaterialSteel
Motor TypeSplit Capacitor
Mounting TypeSurface
Number of Speeds2
Power Rating1/4 hp
Speed1100 rpm High, 800 rpm Low
Type1-Phase Standard Unassembled
Voltage Rating120 VAC
