TPI TPI ACU24-P

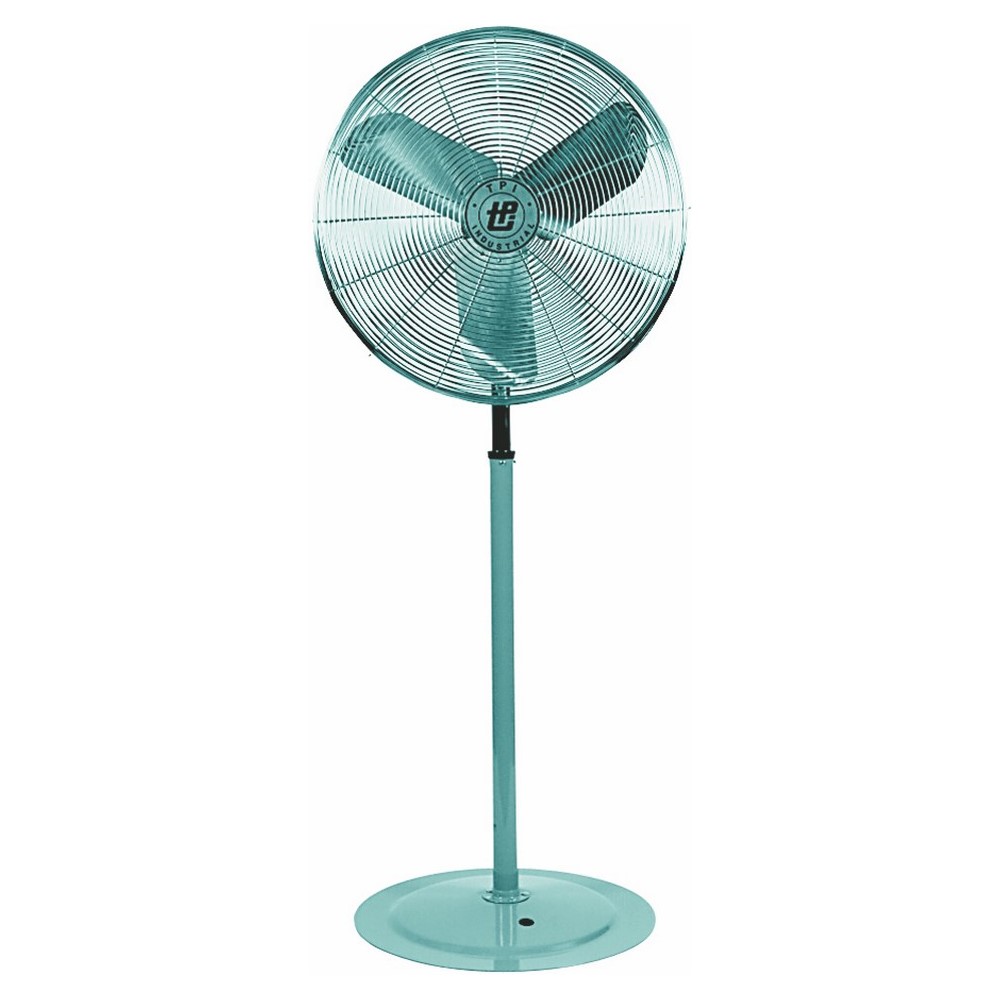

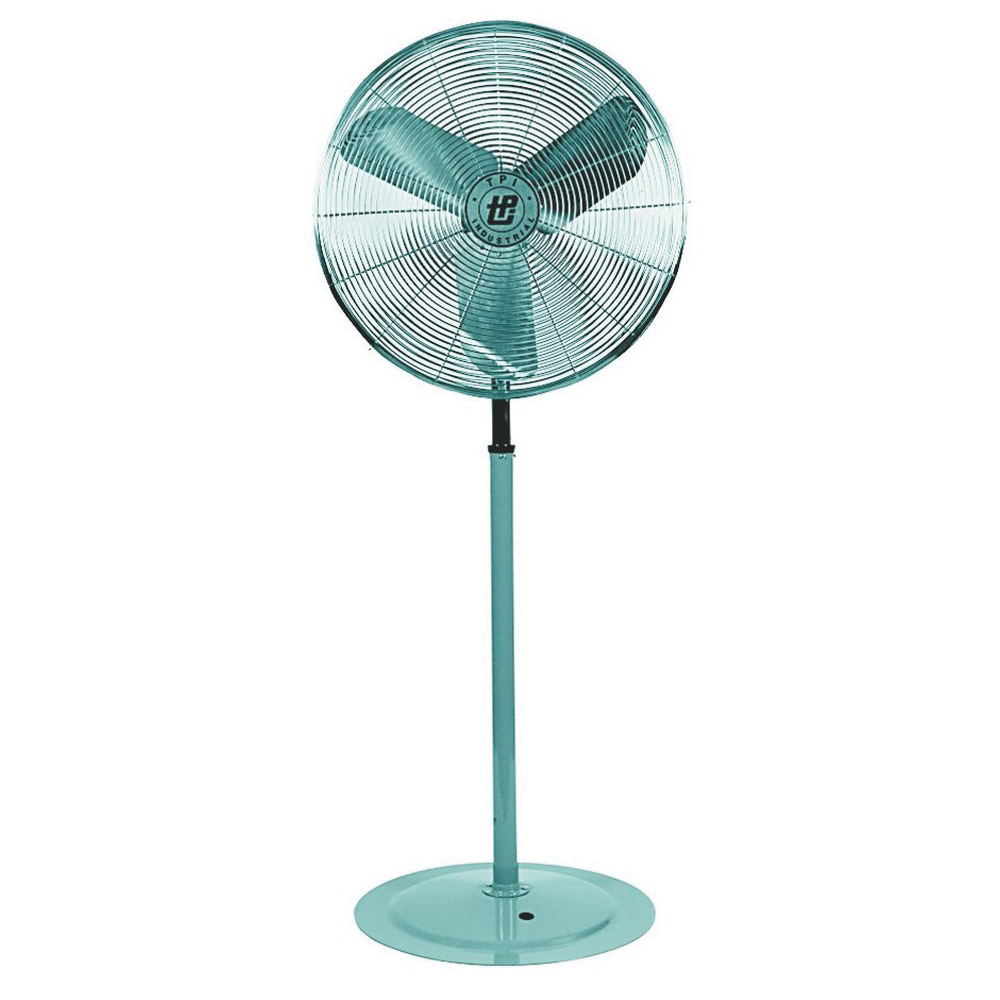

TPI ACU24P 1-Phase Standard Unassembled Air Circulator, 24 in Blade, 3000 cfm High, 2600 cfm Low Flow Rate, 120 VAC, 2.5 A
Invoice description:
Fan 3spd 1/4hp 24" Pedst L * Needs Assembling *
UPC: 686334796231
UNSPSC:
40101602
Manufacturer PN: ACU24P
$630.86 EA
Factory OrderEstimated to ship in 16 days
TPI Air Circulator, 1-Phase Standard Unassembled, 24 in Blade, 3000 cfm High, 2600 cfm Low, 1100 rpm High, 800 rpm Low Speed, 1/4 hp Power, 120 VAC, 2.5 A, 2 Speed, Pull Chain Control, Paddle Blade, Aluminum Blade, Split Capacitor Motor, Steel Housing Material, Surface Mounting, SJT 12 ft Cord, 27 in Dia x 14-1/2 in D Dimensions, Domestic
Features
- Steel hub/spider aluminum paddle blades
- Coated steel guards
- Motor, blades, guard and mount are packed and shipped in a single UPS-able carton
- Ball bearing, totally enclosed, permanent split capacitor and permanently lubricated motor
- #48 motor frame
- 1/2 in Dia shaft motor
- Motor drive
- Gray color
- 52 to 78 in pole adjustment
Specifications
ApplicationIndoor-Industrial and Commercial Applications
Amperage Rating2.5 A
Blade MaterialAluminum
Blade Size24 in
Blade TypePaddle
Control TypePull Chain
Cord TypeSJT 12 ft
Dimensions27 in Dia x 14-1/2 in D
Domestic/ImportDomestic
Flow Rate3000 cfm High, 2600 cfm Low
Housing MaterialSteel
Motor TypeSplit Capacitor
Mounting TypeSurface
Number of Speeds2
Power Rating1/4 hp
Speed1100 rpm High, 800 rpm Low
Type1-Phase Standard Unassembled
Voltage Rating120 VAC
Additional Information
Warranty1 Year
Standards/ApprovalcETLus Listed|OSHA Compliant|PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer|and chromium|which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov
Country of OriginUS
Specification Sheet
