SGS SGS 31405

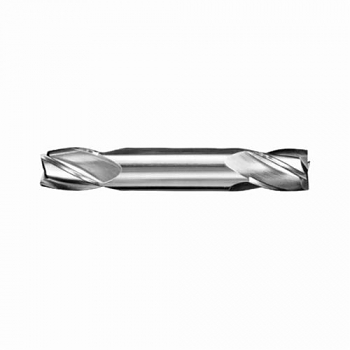

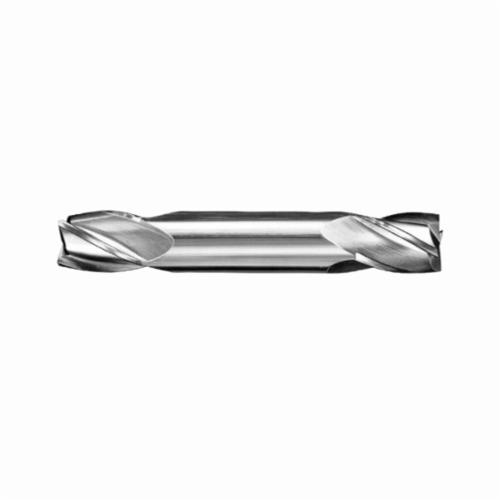

SGS 31405 14S Double End Fractional Stub Length Square End End Mill, 1/16 in Dia Cutter, 1/8 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Uncoated
Invoice description:
1/16 X 1/8 Loc D.e. 4fl Carbide Endmill
In stock
(6)
SGS End Mill, Double End Fractional Stub Length Square End, Series: 14S, 1/16 in Diameter Cutter, 1-1/2 in Overall Length, 1/8 in Length of Cut, 4 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight Shank, 1-3/8 in Shank Length, Micrograin Solid Carbide, Uncoated
Specifications
ApplicationAerospace, Automotive, Castings and Foundries, General Engineering, Medical, Mold and Die and Power Generation
Cutter Diameter1/16 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1/8 in
MaterialMicrograin Solid Carbide
Number of Flutes4
Overall Length1-1/2 in
Series14S
Shank Diameter1/8 in
Shank Length1-3/8 in
Shank TypeStraight
TypeDouble End Fractional Stub Length Square End
Additional Information
Country of OriginUS
