SGS SGS 45405

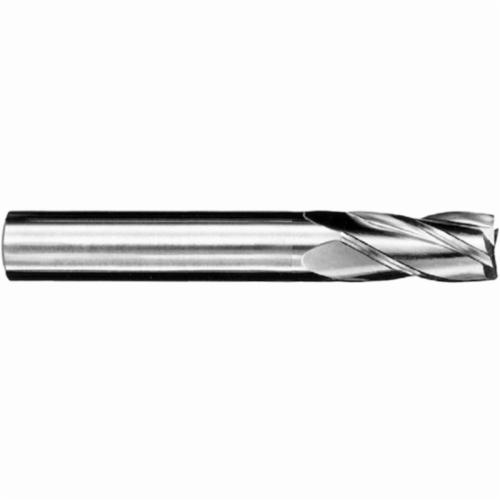

SGS® 45405 1M Center Cutting General Purpose Medium Length Single End Square End End Mill, 6.5 mm Dia Cutter, 16 mm Length of Cut, 4 Flutes, 6.5 mm Dia Shank, 60 mm OAL, AlTiN Coated
Invoice description:
Em 6.5x6.5x16x60mm 4fl Tialn
Factory Order
SGS® End Mill, Center Cutting General Purpose Medium Length Single End Square End, Series: 1M, 6.5 mm Cutter Dia, 60 mm Overall Length, 16 mm Length of Cut, 4 Flutes, Spiral Flute, 6.5 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Straight Shank, Micrograin Solid Carbide, AlTiN Coated
Features
- Solid carbide provides better rigidity than high speed steel
- It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials
- Lab inspected and certified raw material
- Precision CNC ground to industry leading specifications
- Consistent quality and predictable performance
- Positive rack angle
- External coolant
- Applicable materials: steels, stainless steels, cast iron, titanium, non-ferrous and plastic/composites
- +0.000/-0.05 mm D1, H6 D2 tolerances
Specifications
ApplicationAerospace, Medical, Power Generation, Automotive, Mold & Die, Castings & Foundries and General Engineering
TypeCenter Cutting General Purpose Medium Length Single End Square End
Series1M
Cutter Diameter6.5 mm
Overall Length60 mm
Length of Cut16 mm
Number of Flutes4
Flute TypeSpiral
Shank Diameter6.5 mm
Cutting DirectionRight Hand
Helix Angle30 deg
Additional Information
Standards/ApprovalDIN 6528
