SGS SGS 30377

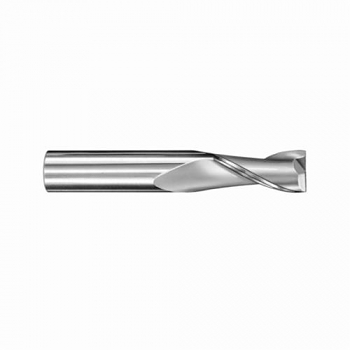

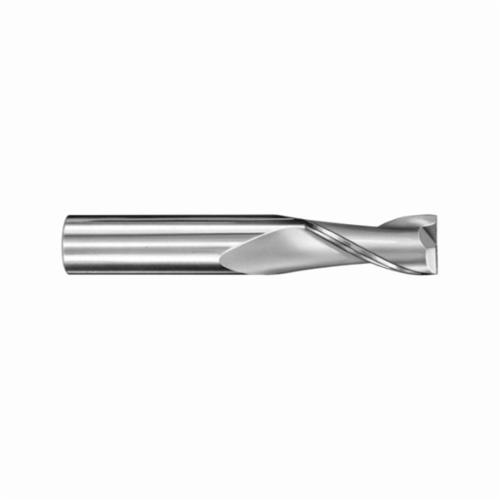

SGS 30377 03S Fractional Square End End Mill, 1/8 in Dia Cutter, 3/8 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Uncoated
Invoice description:
End Mill 1/8 Std Lgth 2f L Solid Carbide 01004 0
UPC: 691781303772
UNSPSC:
23242511
Manufacturer PN: 30377
$14.76 EA
Factory OrderEstimated to ship in 7 days
SGS End Mill, Fractional Square End, Series: 03S, 1/8 in Cutter Dia, 1-1/2 in Overall Length, 3/8 in Length of Cut, 2 Flutes, Spiral Flute, 1/8 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Straight Shank, 1-1/8 in Shank Length, Micrograin Solid Carbide, Uncoated
Specifications
ApplicationAerospace, Automotive, Castings and Foundries, General Engineering, Medical, Mold and Die and Power Generation
Cutter Diameter1/8 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/8 in
MaterialMicrograin Solid Carbide
Number of Flutes2
Overall Length1-1/2 in
Series03S
Shank Diameter1/8 in
Shank Length1-1/8 in
Shank TypeStraight
TypeFractional Square End
Additional Information
Country of OriginUS
Sds
