Harvey Tool HARV 47665

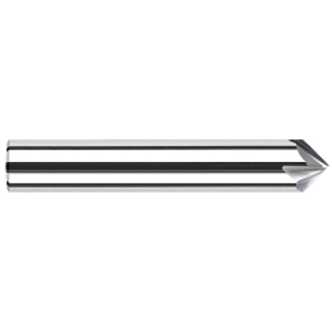

Harvey Tool 47665 Chamfer Cutter, 1/4 in Dia Cutter Head, 130 deg Included Angle, 2-1/2 in OAL, Solid Carbide, Uncoated
Invoice description:
Chcut 1/4x.01x.058x2.5 2fl Nc Pointed 65d/side
Manufacturer PN: 47665
$93.22 EA
Factory OrderEstimated to ship in 7 days
Harvey Tool, 47665, Chamfer Cutter, 1/4 in Diameter Cutter Head, 130 deg Included Angle, 2-1/2 in Overall Length, 2 Flutes, Point End Style, Cylindrical Shank, 1/4 in Shank Diameter, Right Hand Cutting Direction, 1/4 in Diameter Cutting, 0.058 in Length of Cut, Solid Carbide, Uncoated
Features
- Choose from three styles Pointed - 2 flute style for deburring and chamfering in narrow grooves, slots and small holes
- Flat End - (non-cutting) multi-flute design improves tool life and finish for profiling and chamfering larger features
- End Cutting 4 flute center cutting geometry to blend the floor and a chamfered wall in a single pass
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Angle Per Side 65
- Tip 0.0100 in
- Type I
Specifications
ApplicationFor chamfering and deburring in small and narrow areas and flat, which is non-end cutting and optimized for profiling and chamfering larger features and great for blending the floor and a chamfered wall in one pass
Cutter Head Diameter1/4 in
Cutting Diameter1/4 in
Cutting DirectionRight Hand
End StylePoint
FinishUncoated
Included Angle130 deg
Length of Cut0.058 in
MaterialSolid Carbide
Number of Flutes2
Overall Length2-1/2 in
Shank Diameter1/4 in
Shank TypeCylindrical
TypeType I Center Cut
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
