Harvey Tool HARV 968645-C3
Harvey Tool 968645-C3 Type II Chamfer Cutter, 1/8 in Dia Cutter Head, 90 deg Included Angle, 1-1/2 in OAL, Solid Carbide, AlTiN
Invoice description:
Chamfer Cutter 1/8 45deg 3fl Altin
Manufacturer PN: 968645-C3
$44.56 EA
Factory OrderEstimated to ship in 7 days

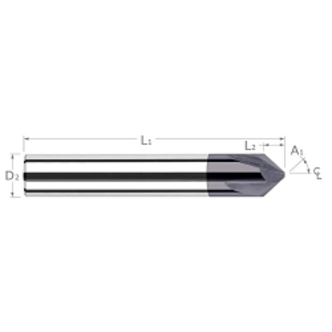

Harvey Tool, 968645-C3, Chamfer Cutter, Type II, 1/8 in Diameter Cutter Head, 90 deg Included Angle, 1-1/2 in Overall Length, 3 Flutes, Flat End Style, Cylindrical Shank, 1/8 in Shank Diameter, Right Hand Cutting Direction, 1/8 in Diameter Cutting, 0.043 in Length of Cut, Solid Carbide, AlTiN
Features
- Choose from three styles Pointed - 2 flute style for deburring and chamfering in narrow grooves, slots and small holes
- Flat End - (non-cutting) multi-flute design improves tool life and finish for profiling and chamfering larger features
- End Cutting 4 flute center cutting geometry to blend the floor and a chamfered wall in a single pass
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
- Angle Per Side 45
- Tip 0.0400 in
Specifications
ApplicationFor chamfering and deburring in small and narrow areas and flat, which is non-end cutting and optimized for profiling and chamfering larger features and great for blending the floor and a chamfered wall in one pass
Cutter Head Diameter1/8 in
Cutting Diameter1/8 in
Cutting DirectionRight Hand
End StyleFlat
FinishAlTiN
Included Angle90 deg
Length of Cut0.043 in
MaterialSolid Carbide
Number of Flutes3
Overall Length1-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeType II
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
Sds
