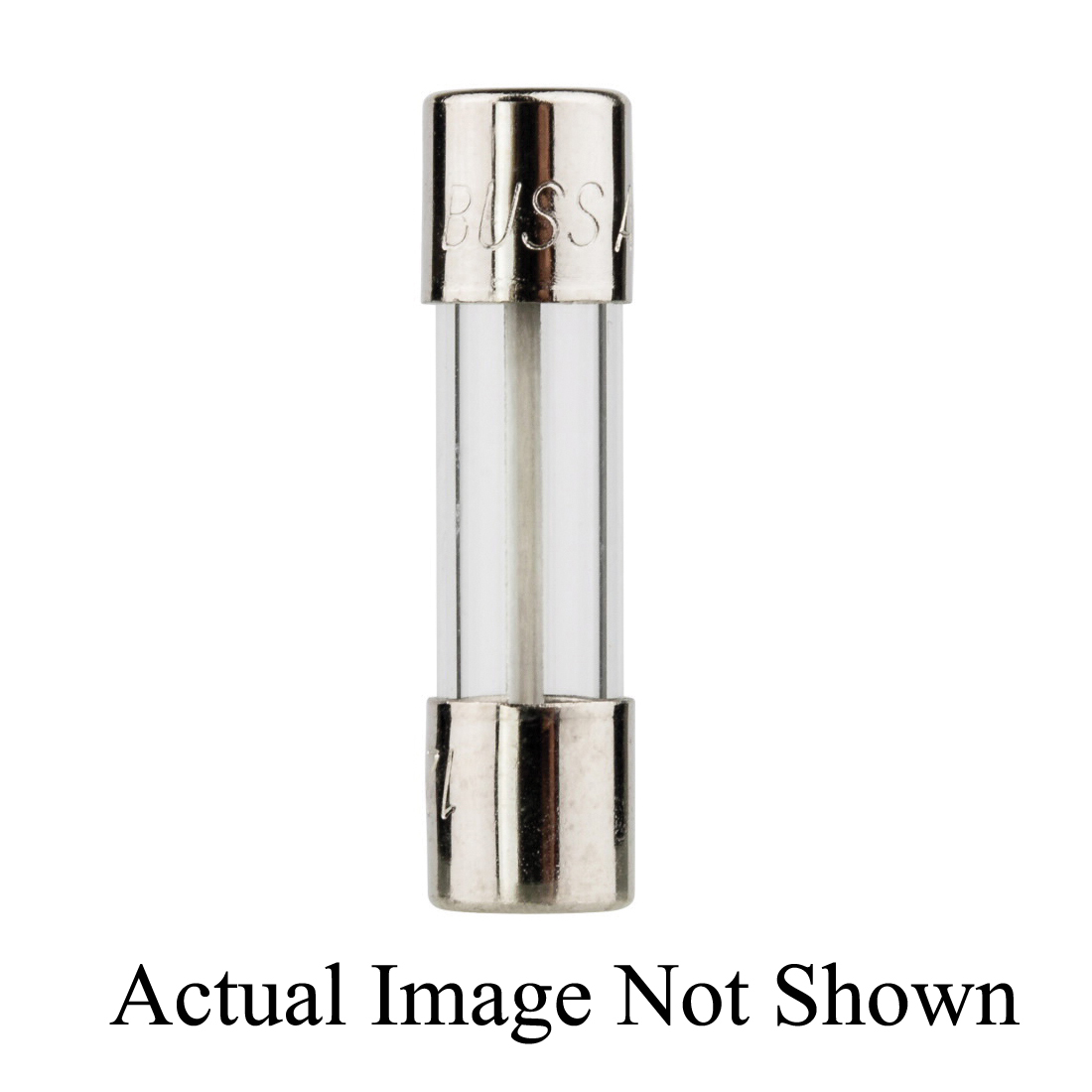

Bussmann BUSS AGX-30
Bussmann AGX-30 Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 30 A, 32 VAC, 1 kA Interrupt, Cylindrical Body
Invoice description:
Fuse 1/4" X 1" Glass 5/pkg
UPC: 051712704854
Pack Size: 5
UNSPSC:
39121607
Manufacturer PN: AGX-30
$5.68 EA
Factory OrderEstimated to ship in 7 days
Bussmann Fast Acting Fuse, Small Dimension, Series: AGX, Non-Indicating, 30 A, 32 VAC, 1 kA Interrupt, 4 hr, 60 min, 5 s, 2 min Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1 in L Body
Features
- Size rejects insertion of other fuse types
- 4 hr minimum at 110%, 60 min maximum at 135%, 5 sec maximum at 200%, 2 min maximum at 200% response time
- 1 kA at 32 VAC interrupt rating
Specifications
ApplicationInstruments, Electronic and Small Appliance Circuits Applications
Amperage Rating30 A
Body Size1/4 in Dia x 1 in L
Body TypeCylindrical
ElementSingle
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating1 kA
MaterialGlass
Mounting TypeHolder
Response Time4 hr, 60 min, 5 s, 2 min
SeriesAGX
Terminal TypeFerrule
TypeSmall Dimension
Voltage Rating32 VAC
Additional Information
Standards/ApprovalGuide JDYX2 UL File No. E19180|UL Listed|UL 248-14
Country of OriginTW
