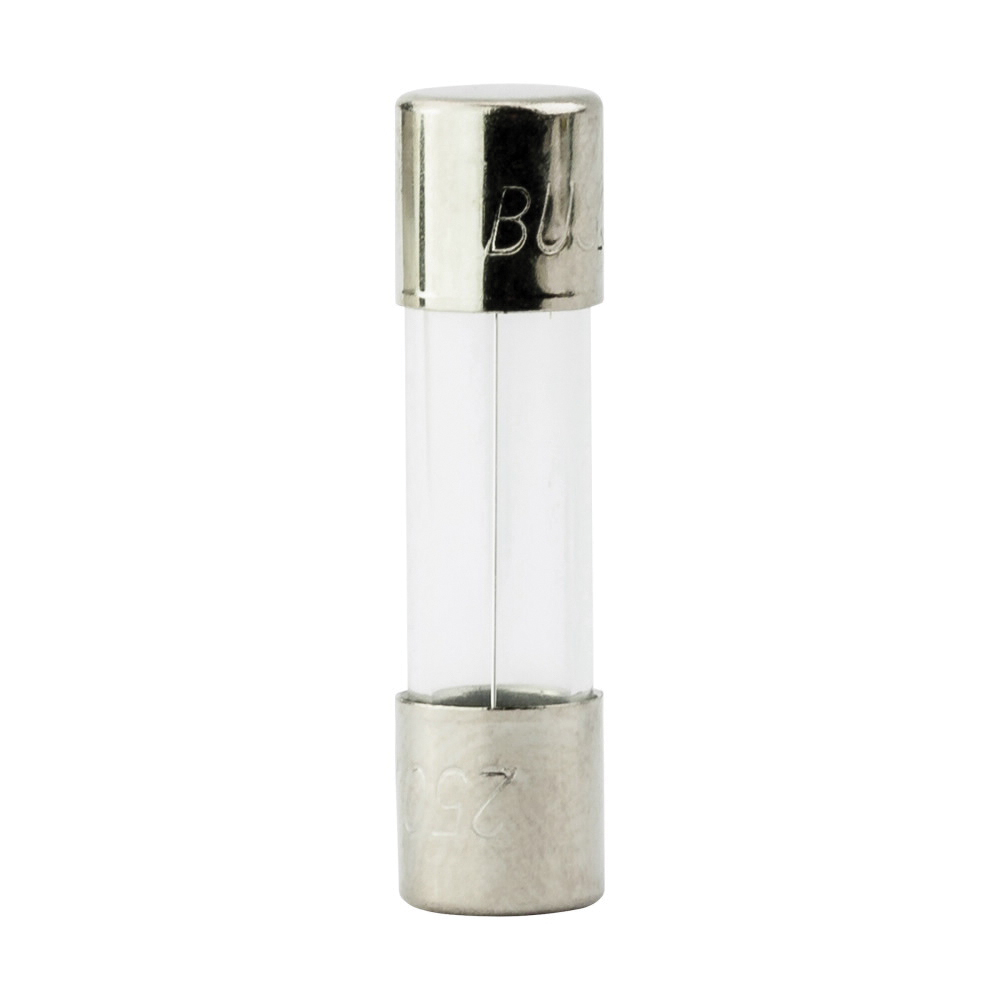

Bussmann BUSS AGX-3

Bussmann AGX-3 Small Dimension Fast Acting Fuse With Nickel Plated Brass End Caps, 3 A, 250 VAC, 100 A, 10 kA Interrupt, Cylindrical Body

Invoice description: Fuse 1/4" X 1 Glass 5/pk

UPC: 051712704779
Pack Size: 5
UNSPSC: 39121607
Manufacturer PN: AGX-3
$5.08 EA
Factory Order
Estimated to ship in 9 days
QTY:


Bussmann Fast Acting Fuse, Small Dimension, Series: AGX, Non-Indicating, Rejection, 3 A, 250 VAC, 100 A, 10 kA Interrupt, 4 hr, 60 min, 5 s, 2 min Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1 in L Body

  • Features

  • Size rejects insertion of other fuse types
  • 4 hr minimum at 110%, 60 min maximum at 135%, 5 sec maximum at 200%, 2 min maximum at 200% response time
  • 100 A at 250 VAC, 10 kA at 125 VAC interrupt rating

Specifications

ApplicationInstruments, Electronic and Small Appliance Circuits Applications
Amperage Rating3 A
Body Size1/4 in Dia x 1 in L
Body TypeCylindrical
ElementSingle
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating100 A, 10 kA
MaterialGlass
Mounting TypeHolder
Rejection/Non-RejectionRejection
Response Time4 hr, 60 min, 5 s, 2 min
SeriesAGX
Terminal TypeFerrule
TypeSmall Dimension
Voltage Rating250 VAC

Additional Information

Standards/ApprovalGuide JDYX|UL File No. E19180|Guide JDYX7|cULus Li
Country of OriginTW

Documents
