3M 3MA 00054007417545

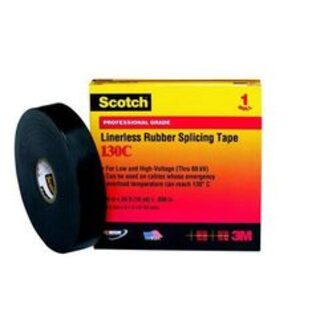

3M 7000006091 Splicing Tape, 30 ft L x 2 in W, 30 mil THK, Rubber, Black

Invoice description: Tape Splicing 130x 2"x30 12/ca

UPC: 054007417545

UNSPSC: 31201534

Manufacturer PN: 7000006091

^$38.70 EACH

Factory Order
Estimated to ship in 11 days

enlarge

Product Overview

3M, 7000006091, Splicing Tape, 30 ft Length, 2 in Width, 30 mil Thickness, Rubber, Black, 69 kV, 750 V/mil Dielectric Strength, 250 in-lb Tensile Strength, 194 deg F Maximum Operating, Specifications Met: ASTM D 4388-08 Type 1, 2 and 3

Features
Highly conformable, rubber resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
Suitable for splicing and terminating cables and wires
Provides an excellent thermal dissipation of splice heat
Tensile strength rating of 17 lb/in meets professional electrical standards
Linerless, self-bonding, primary insulating tape rated through 69 kV
High thermal conductivity
Ethylene propylene base
Excellent physical and electrical properties
Designed to insulate splices and terminate cables whose overload temperatures can reach 130 deg C

Specifications

ApplicationFor low and high voltage (through 69 kV) applications, moisture-sealing electrical connection, bus bar insulation, end-sealing high voltage cables, motor leads and Jacket repairs

Adhesive MaterialRubber

Backing MaterialRubber

ColorBlack

Dielectric Strength750 V/mil

Length30 ft

Material TypeRubber

Maximum Operating Temperature194 deg F

Specifications MetASTM D 4388-08 Type 1, 2 and 3

Tensile Strength250 in-lb

Thickness30 mil

TypeLinerless Premium Grade

Voltage Rating69 kV
